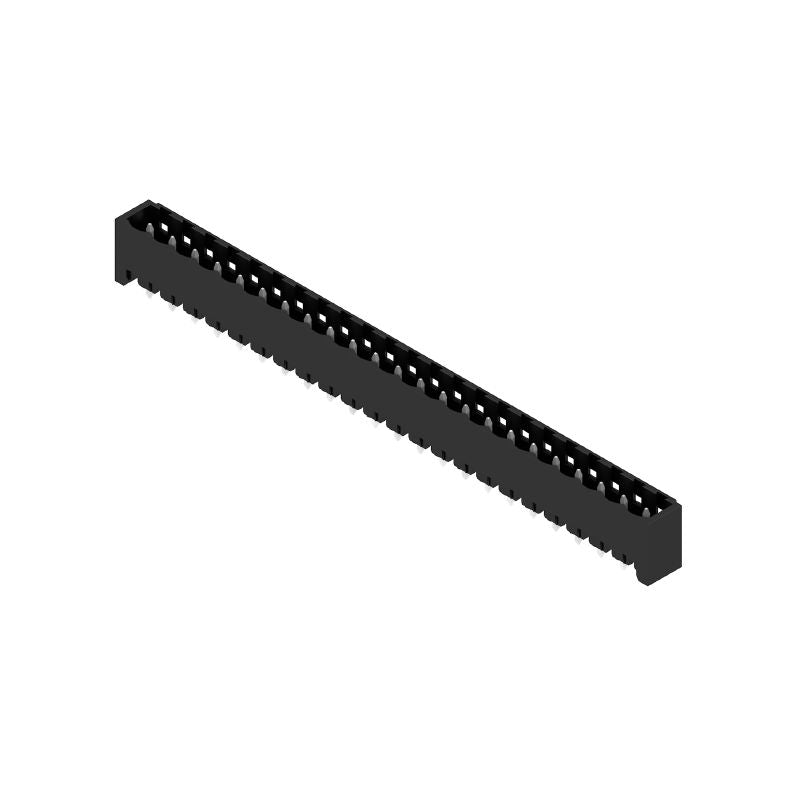

1149330000 - 23-Pole 5.08mm PCB Male Header Connector with Closed Side (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile male header PCB plug-in connector featuring a closed side design This connector is equipped with through-hole (THT) solder connections and a pitch of 508 mm It provides 23 poles and facilitates a 180° outgoing elbow for efficient configurations The solder pins measure 32 mm in length and feature a durable tin coating, presented in an elegant black finish Each connector is packaged in a box and adheres to ROHS standards, certified under number E60693, ensuring compliance with environmental regulations.

Features and Benefits:

•IEC rated for 400 V and 24 A.

•UL rated for 300 V and 18.5 A.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for secure connections.

•Suitable for board connections with THT soldering.

Specifications:
