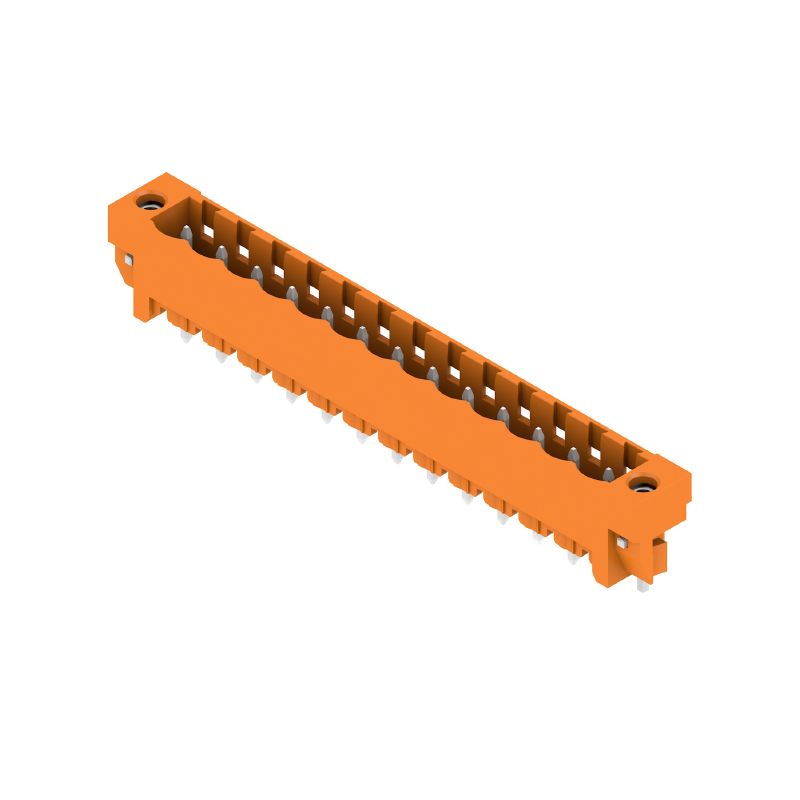

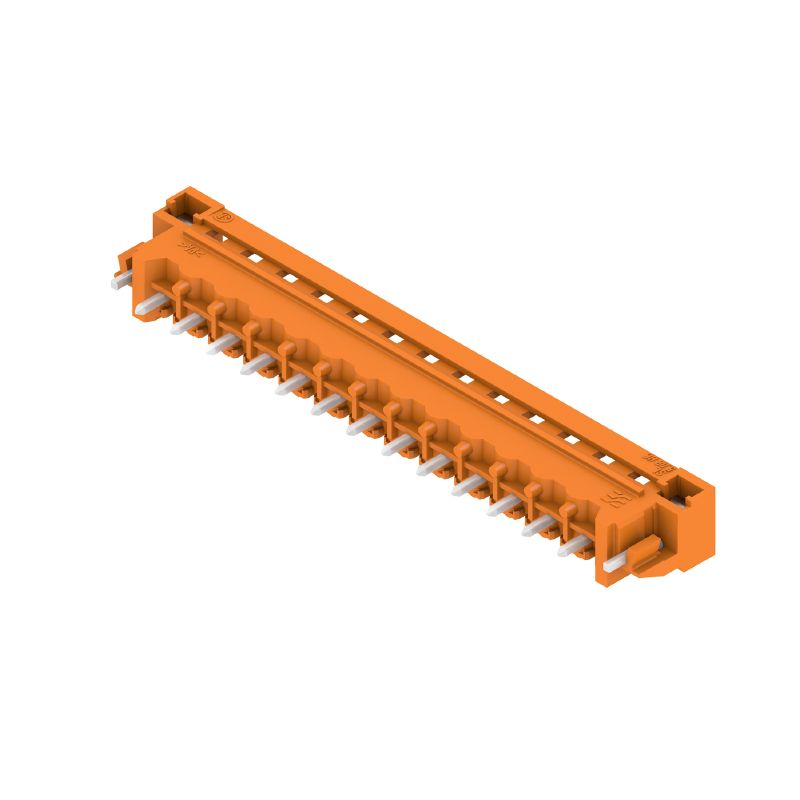

1148240000 - 13-Pole 5.08mm PCB Connector with Solder Flange, 180° Angle (Pack of 24)

1148240000 - 13-Pole 5.08mm PCB Connector with Solder Flange, 180° Angle (Pack of 24)

SKU: SKU: 1148240000   Download PDF

Select a Variant:
  • 1148240000 - 13-Pole 5.08mm PCB Connector with Solder Flange, 180° Angle (Pack of 24)
Qty:
Regular price Now $88.66   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $88.66 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the male header PCB plug-in connector, expertly engineered for reliability with a robust solder flange and through-hole (THT) solder connection This connector boasts a pitch of 508 mm and comprises 13 poles arranged in a 180° angled format The solder pins measure 32 mm in length, featuring a tinned finish for enhanced conductivity, all neatly packaged in an eye-catching orange box Perfect for various electronic applications, this connector combines functionality with quality.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded.

    •Designed for PCB mounting.

    •High-volume resistance of ≤5 mΩ.

    •Used in various electronic applications requiring secure PCB connections.

Specifications:

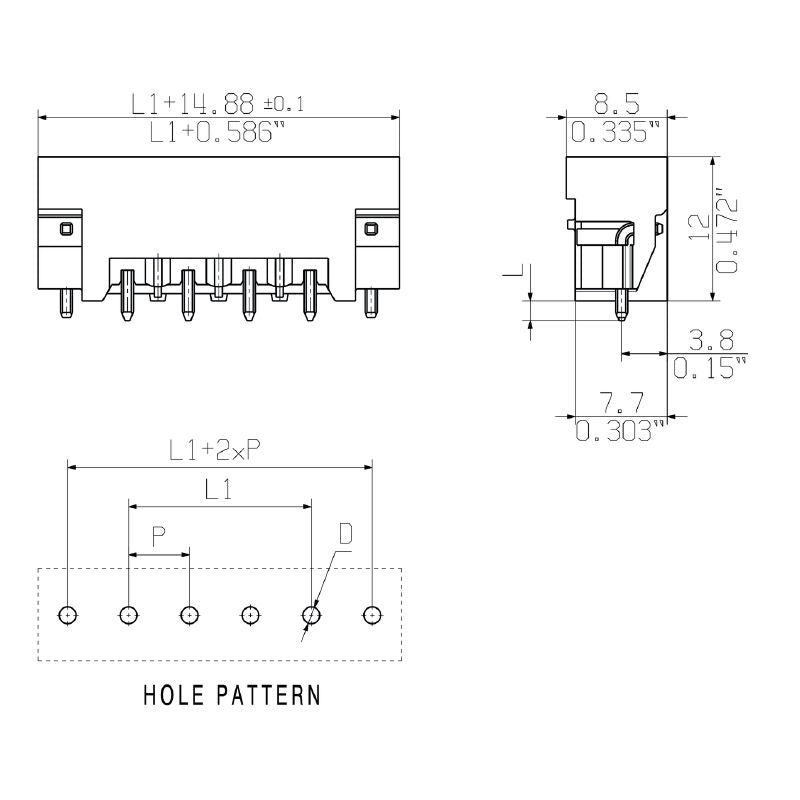

 Depth (mm) 8.5
 Height (mm) 15.2
 Width (mm) 75.84
 Net weight (g) 4.824
 Rated voltage (Use group B) 300 V
 Rated voltage (Use group D) 300 V

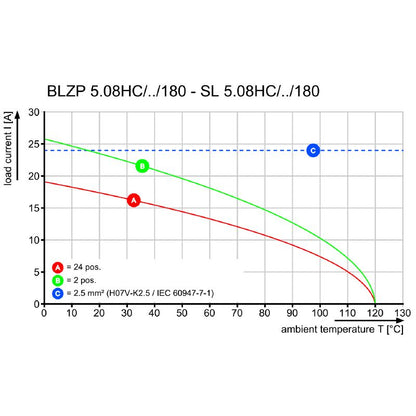

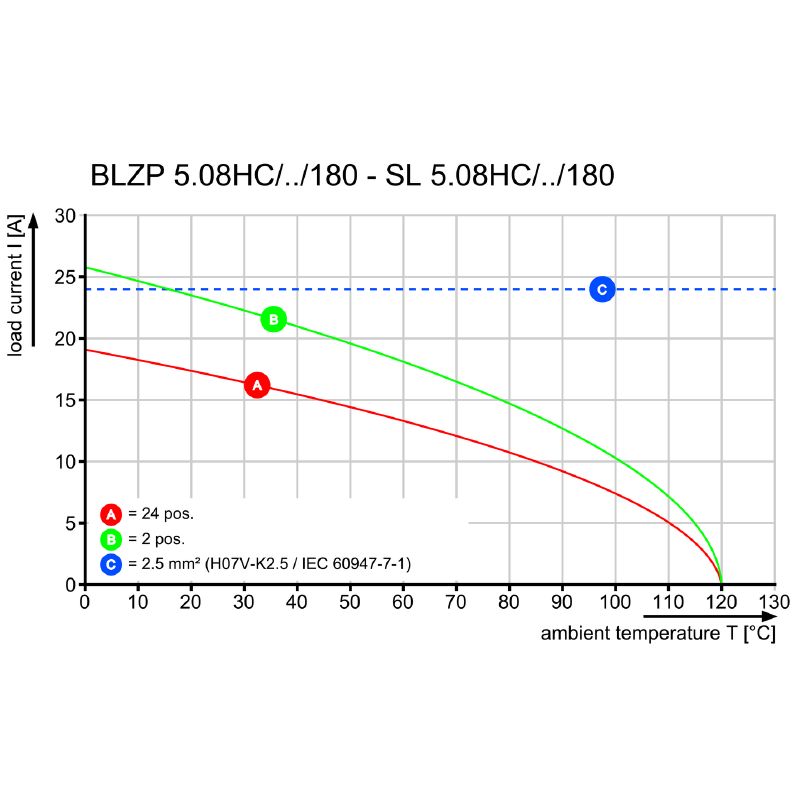

 Rated current (Use group B) 18.5 A
 Rated current (Use group D) 18.5 A
 Number of poles 13
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Protection degree IP20
 Plugging cycles 25
