1148180000 - 5-Pole PCB Male Connector 5.08mm Pitch, Open Side Design (Pack of 50)

1148180000 - 5-Pole PCB Male Connector 5.08mm Pitch, Open Side Design (Pack of 50)

SKU: SKU: 1148180000   Download PDF

Select a Variant:
  • 1148180000 - 5-Pole PCB Male Connector 5.08mm Pitch, Open Side Design (Pack of 50)
Qty:
Regular price Now $55.69   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $55.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

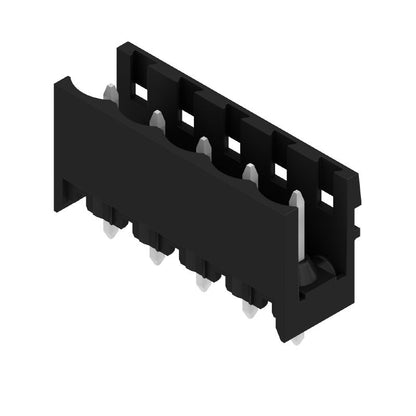

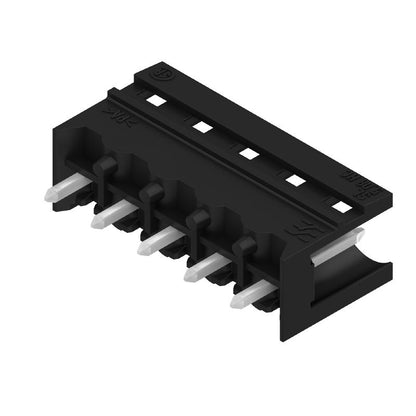

Discover the functionality of this PCB plug-in connector featuring a male header and an innovative open side design With a pin pitch of 508 mm and 5 poles positioned at a 180° angle, this connector offers a reliable through-hole solder connection Each solder pin extends 32 mm and is tinned for improved conductivity It is neatly packaged in black, ensuring a professional look for any project.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for secure connections.

    •Rated for a maximum of 25 plugging cycles.

Specifications:

 UL File Number E60693
 IEC Rating 400 V / 24 A
 UL Rating 300 V / 18.5 A

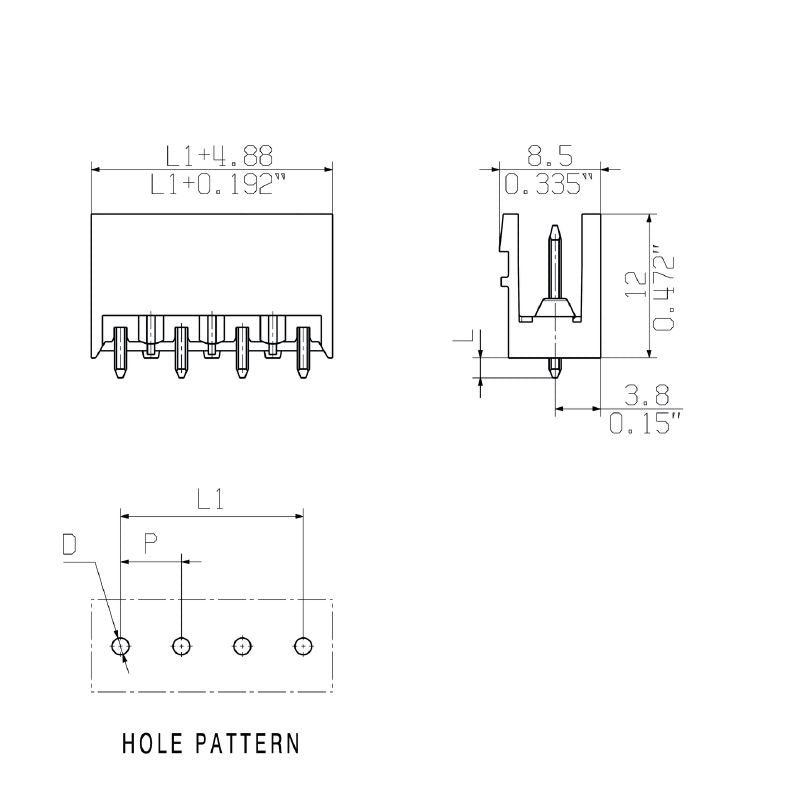

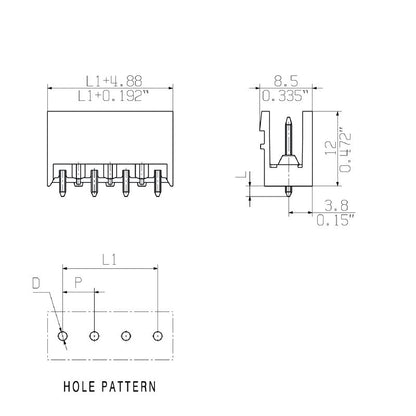

 Depth 8.43 mm
 Height 15.2 mm
 Width 25.2 mm
 Net Weight 2.06 g
 Operating Temperature Range -50°C to 100°C

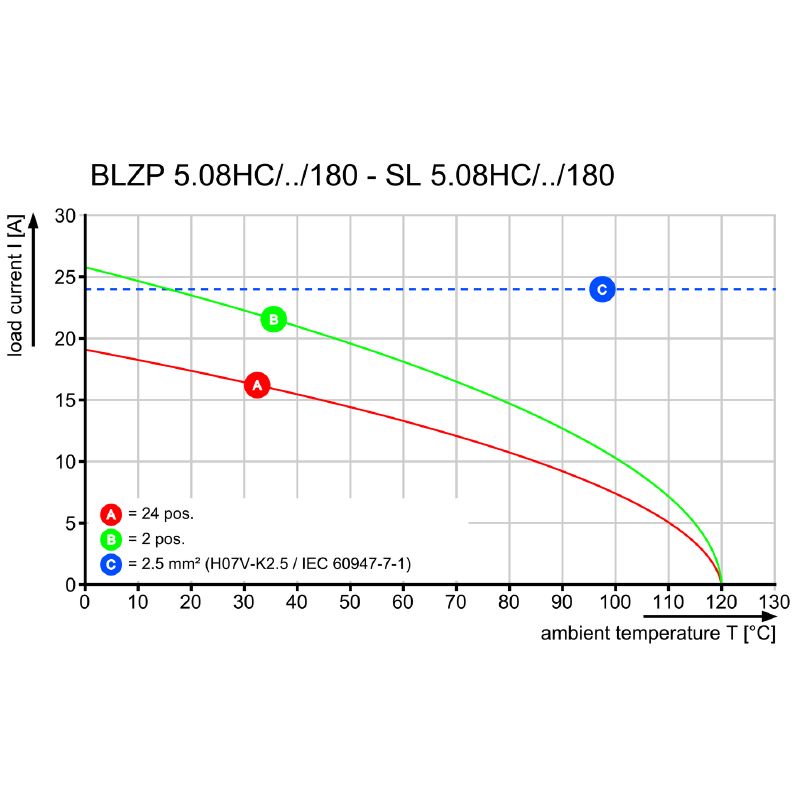

 Rated Current 24 A at 20°C, 19 A at 20°C max
 Contact Material Cu-alloy
 Insulating Material PA GF
 Protection Degree IP20
