1148020000 - 5.08mm 6-Pole Male PCB Header Connector with Solder Flange (Pack of 42)

1148020000 - 5.08mm 6-Pole Male PCB Header Connector with Solder Flange (Pack of 42)

SKU: SKU: 1148020000   Download PDF

Select a Variant:
  • 1148020000 - 5.08mm 6-Pole Male PCB Header Connector with Solder Flange (Pack of 42)
Qty:
Regular price Now $86.95   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $86.95 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

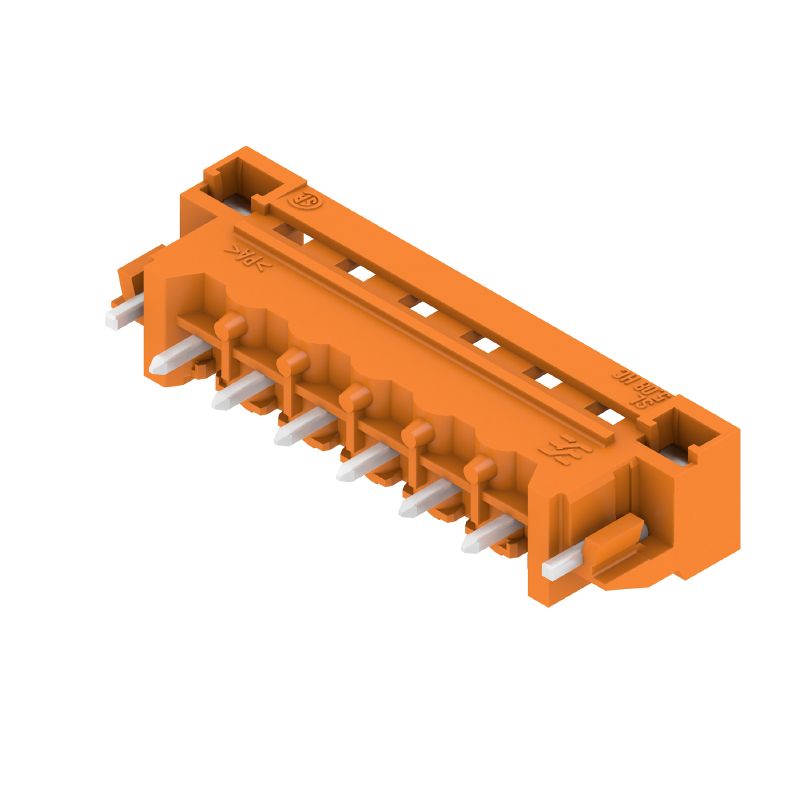

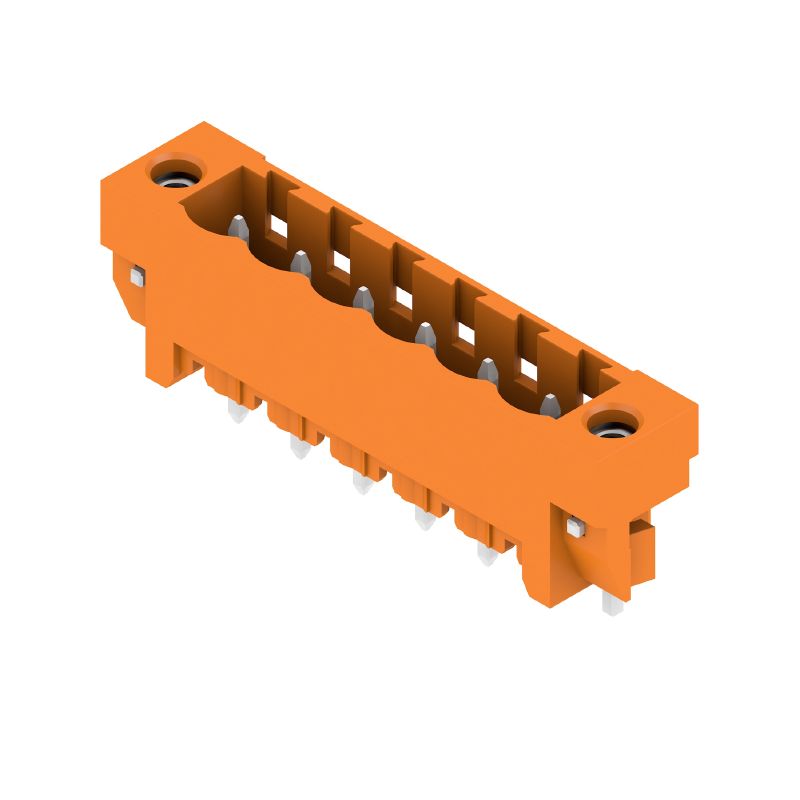

Discover this versatile male header PCB plug-in connector, designed to meet your connectivity needs Featuring a robust solder flange with a Through-Hole Technology (THT) solder connection, this connector has a 508 mm pitch and accommodates 6 poles arranged at a 180-degree angle The solder pins, measuring 32 mm in length, are tin-coated for enhanced durability Each connector is neatly packaged in an eye-catching orange box, making it a reliable choice for your electronic projects.

Features and Benefits:

    •Touch-safe protection according to DIN VDE 57 106 with finger-safe unplugged and back-of-hand-safe plugged.

    •Can be coded for configuration flexibility.

    •Suitable for high plugging cycles up to 25.

    •Compliant with RoHS standards without exemption.

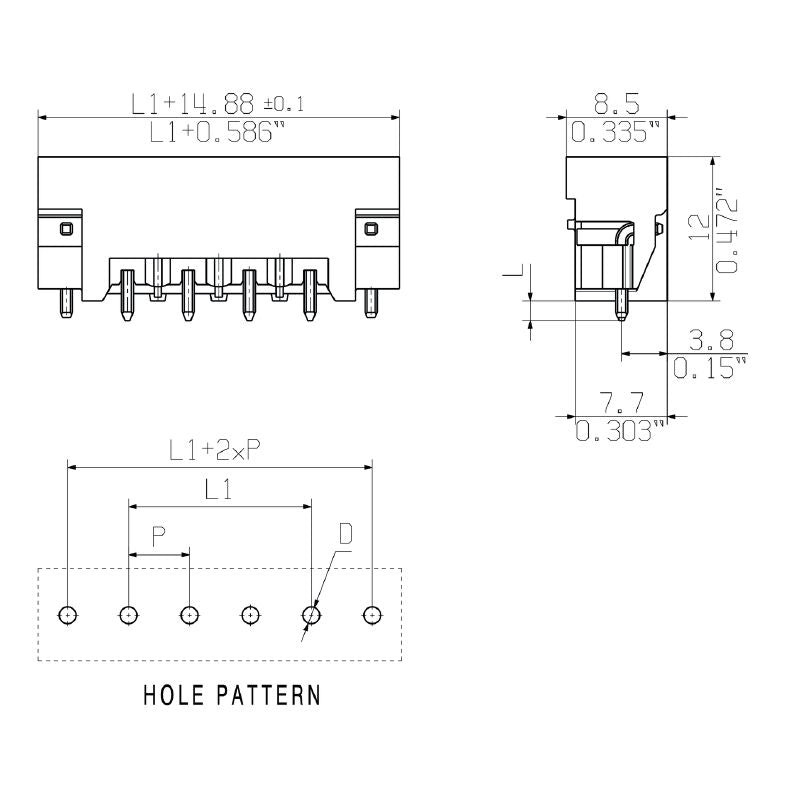

Specifications:

 Number of poles 6
 Solder pin length 3.2 mm

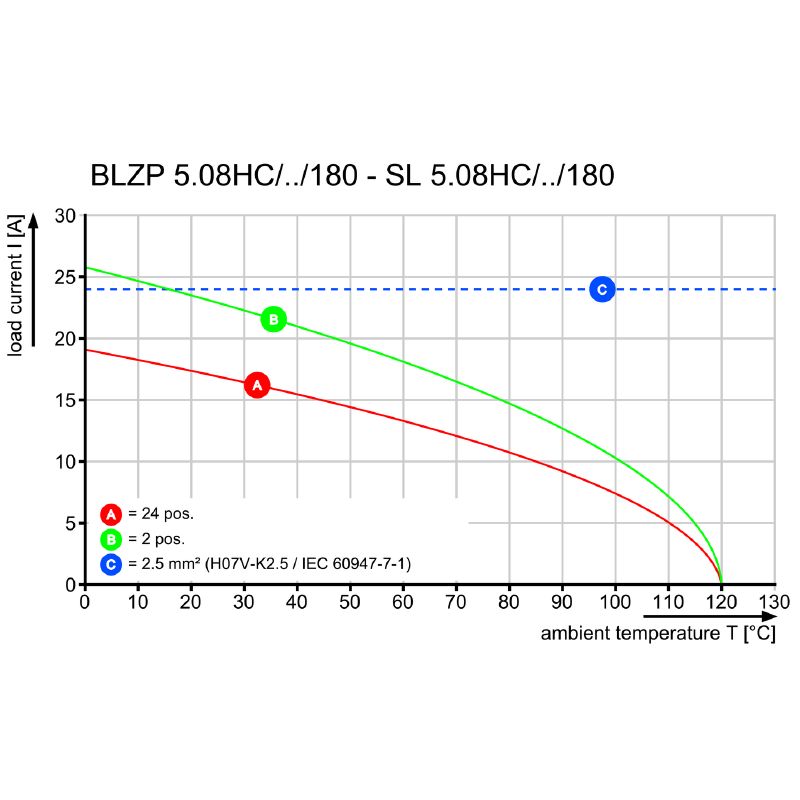

 Rated voltage (IEC) 400 V / 24 A
 Rated current (UL) 300 V / 18.5 A
 Solder eyelet hole diameter (D) 1.4 mm
 Pitch in mm (P) 5.08 mm
 Depth 8.5 mm
 Height 15.2 mm
 Width 40.28 mm
 Storage temperature (min) -40 °C
 Storage temperature (max) 70 °C
 Operating temperature (min) -50 °C
 Operating temperature (max) 100 °C
 Contact material Cu-alloy
 UL 94 flammability rating V-0
