1147600000 - 12-Pole 3.2mm Male PCB Connector, 90° Angle, Orange (Pack of 50)

1147600000 - 12-Pole 3.2mm Male PCB Connector, 90° Angle, Orange (Pack of 50)

SKU: SKU: 1147600000   Download PDF

Select a Variant:
  • 1147600000 - 12-Pole 3.2mm Male PCB Connector, 90° Angle, Orange (Pack of 50)
Qty:
Regular price Now $133.61   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $133.61 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

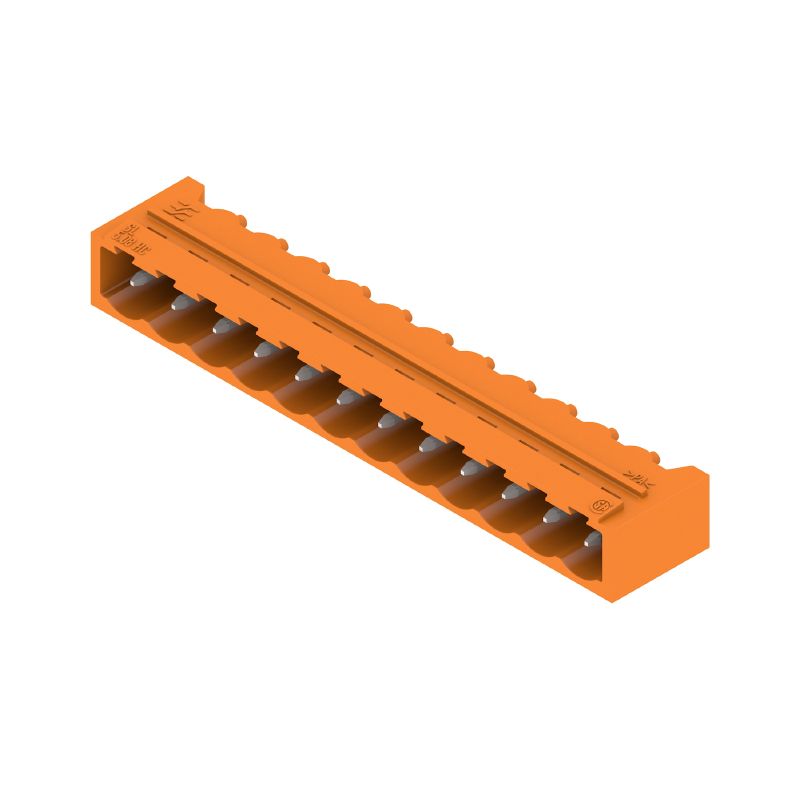

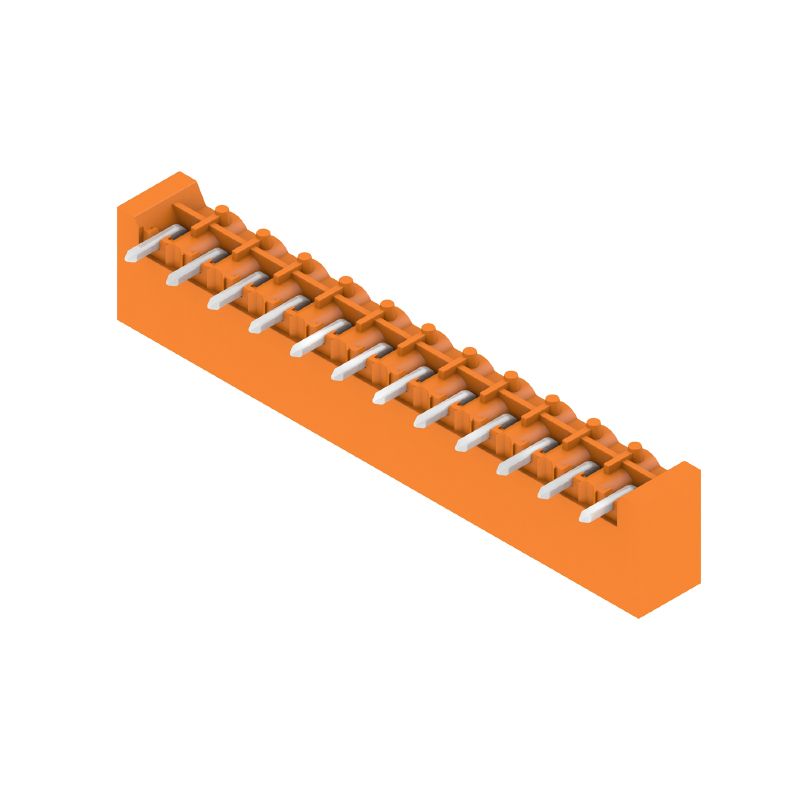

Introducing a versatile PCB plug-in connector, crafted as a male header with a closed side for through-hole technology (THT) soldering This connector features a 12-pin configuration at a 90° angle, ensuring optimal connectivity Each solder pin measures 32 mm in length and comes with a tinned finish for enhanced performance Available in an eye-catching orange, this product is conveniently packaged in a box for easy ordering.

Meeting strict quality standards, it is RoHS and UL approved, and supports IEC ratings of 400 V / 24 A and UL ratings of 300 V / 185 A, making it a reliable choice for your electronic projects.

Features and Benefits:

    •Compliant with RoHS standards without exemptions.

    •Finger-safe when unplugged and back-of-hand-safe when plugged.

    •Provisions for touch-safe protection according to DIN VDE standards.

    •Can be coded for specific usage.

    •Long-term storage tolerance at temperatures up to 50 °C.

Specifications:

 Depth 12 mm
 Height 11.63 mm
 Width 64.16 mm
 Net weight 4.96 g
 Pitch 5.08 mm
 Number of poles 12
 Solder pin length 3.2 mm
 Operating temperature range -50 °C to 100 °C
 Rated voltage 400 V
 Rated current 24 A
 Protection degree IP20
 Volume resistance ≤5 mΩ
 Touch-safe protection finger-safe unplugged / back-of-hand-safe plugged
