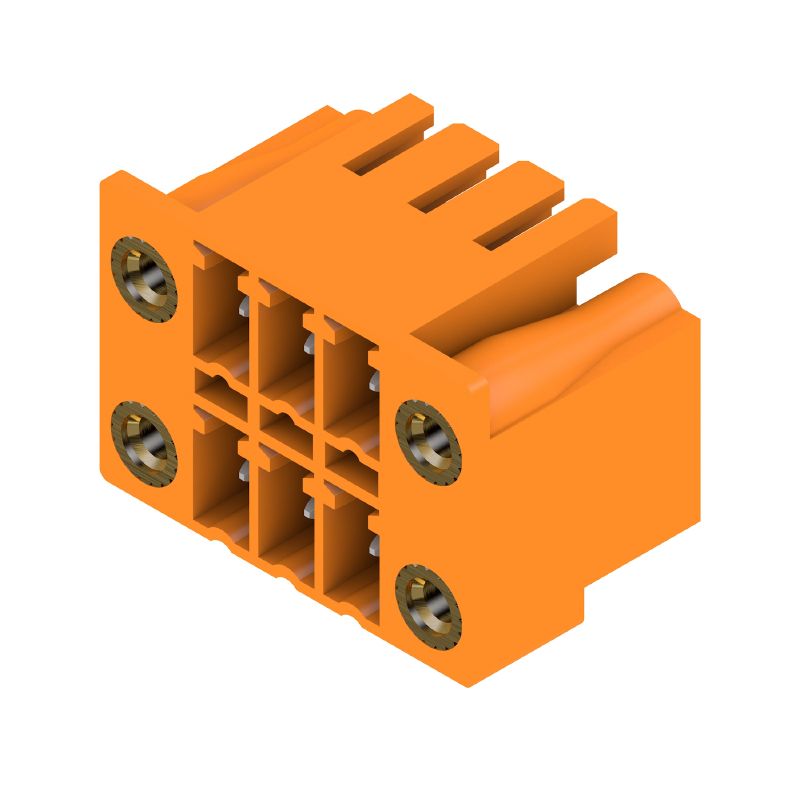

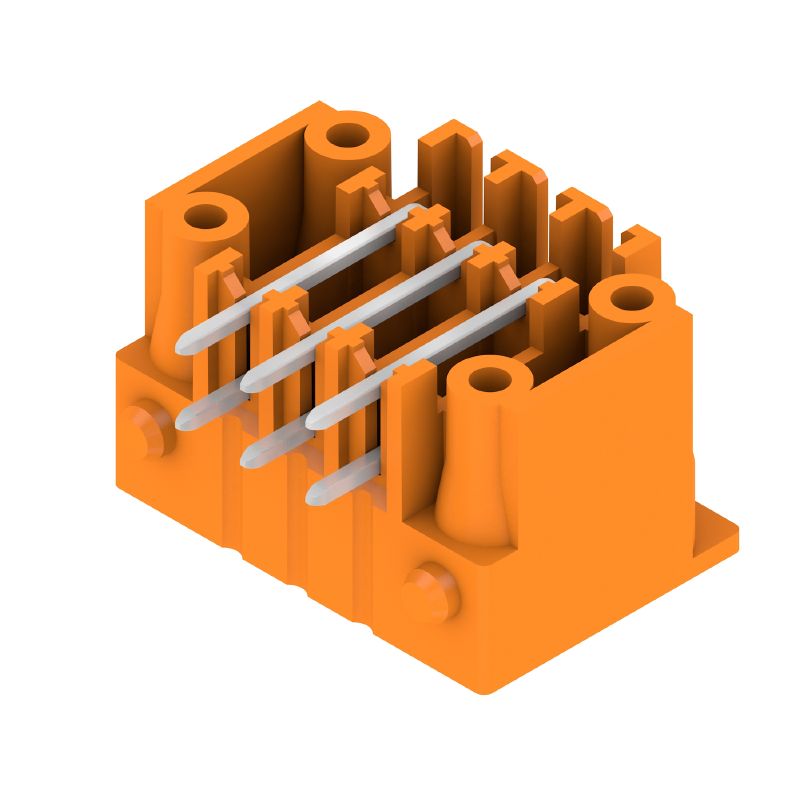

1040970000 - 3.81mm PCB Male Connector, 6-Pole, 90° Angle, Orange (Pack of 50)

1040970000 - 3.81mm PCB Male Connector, 6-Pole, 90° Angle, Orange (Pack of 50)

SKU: SKU: 1040970000   Download PDF

Select a Variant:
  • 1040970000 - 3.81mm PCB Male Connector, 6-Pole, 90° Angle, Orange (Pack of 50)
Qty:
Regular price Now $191.67   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $191.67 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the reliability of this male header PCB connector, designed with a flange and a 90° angle, featuring six poles and a through-hole (THT) solder connection at 381 mm The tinned solder pin measures 32 mm in length, ensuring excellent conductivity Available in a vibrant orange hue, this connector comes neatly packaged in a box It belongs to the OMNIMATE Signal series BC/SC 381 and is suitable for various operating conditions, making it a versatile choice for your electronic projects.

Features and Benefits:

    •RoHS compliant with exemption.

    •Touch-safe with IP20 plugged and IP10 unplugged rating.

    •Suitable for board connections.

    •Can be coded for specific applications.

Specifications:

 Depth 13.3 mm
 Height 18.4 mm
 Width 21.82 mm
 Net weight 4.17 g
 Rated voltage (IEC) 320 V
 Rated current (IEC) 17.5 A
 Number of poles 6
 Solder pin length 3.2 mm
 Operating temperature range -50 °C to 120 °C
 Storage temperature range -40 °C to 70 °C
 Insulating material PA GF
 Contact material Cu-alloy
 Volume resistance ≤5 mΩ
 Flammability rating V-0
