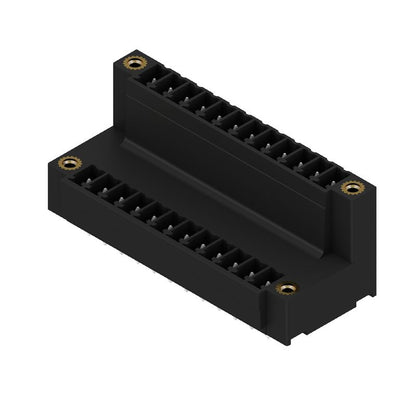

1036060000 - 3.81mm 24-Pole Black PCB Connector, Flange Mount, THT/THR (Pack of 50)

1036060000 - 3.81mm 24-Pole Black PCB Connector, Flange Mount, THT/THR (Pack of 50)

SKU: SKU: 1036060000   Download PDF

Select a Variant:
  • 1036060000 - 3.81mm 24-Pole Black PCB Connector, Flange Mount, THT/THR (Pack of 50)
Qty:
Regular price Now $606.54   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $606.54 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the male header PCB plug-in connector, expertly crafted for flange mounting with a THT/THR solder connection This connector boasts a 381 mm pitch and features a 24-pole configuration in a 180° arrangement Its tinned solder pins measure 32 mm in length, ensuring a secure connection Enclosed in a sleek black housing, this connector is both compliant with RoHS standards and packaged conveniently in a box, making it a reliable choice for your electronic projects.

Features and Benefits:

    •Compliant with RoHS exemption 6c.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for enhanced functionality.

Specifications:

 Rated voltage (IEC) 320 V
 Rated current (IEC, 20°C) 17.5 A
 Pin series quantity 2

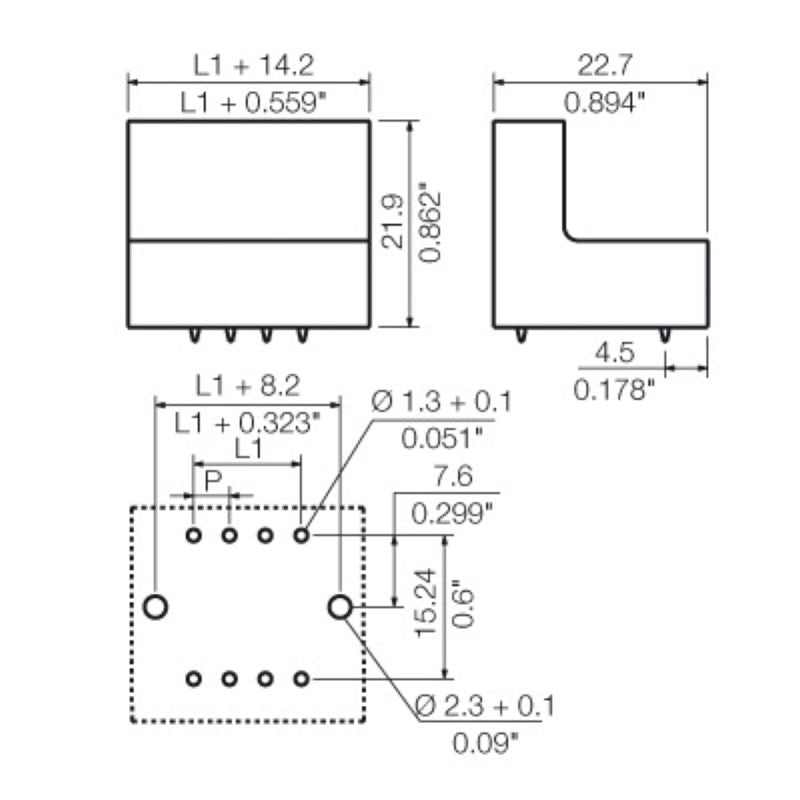

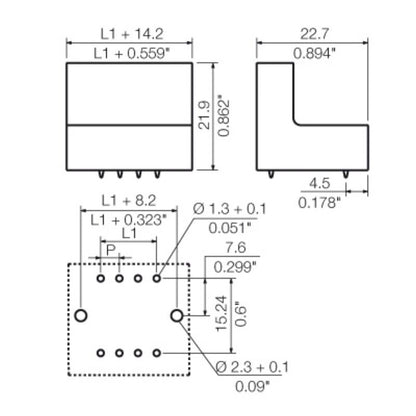

 Depth 22.7 mm
 Height 25.1 mm
 Width 56.11 mm
 Storage temperature, min. -40 °C
 Storage temperature, max. 70 °C
 Operating temperature, min. -50 °C
 Operating temperature, max. 120 °C
 Number of solder pins per pole 1
 Insulating material LCP GF
 Moisture Level (MSL) 1
 UL 94 flammability rating V-0
