Description:

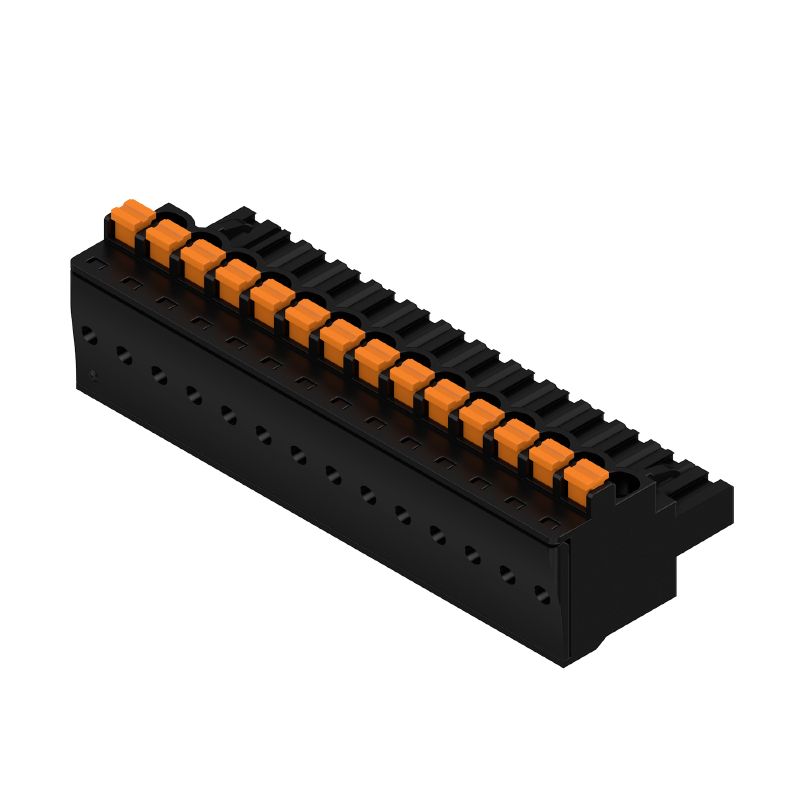

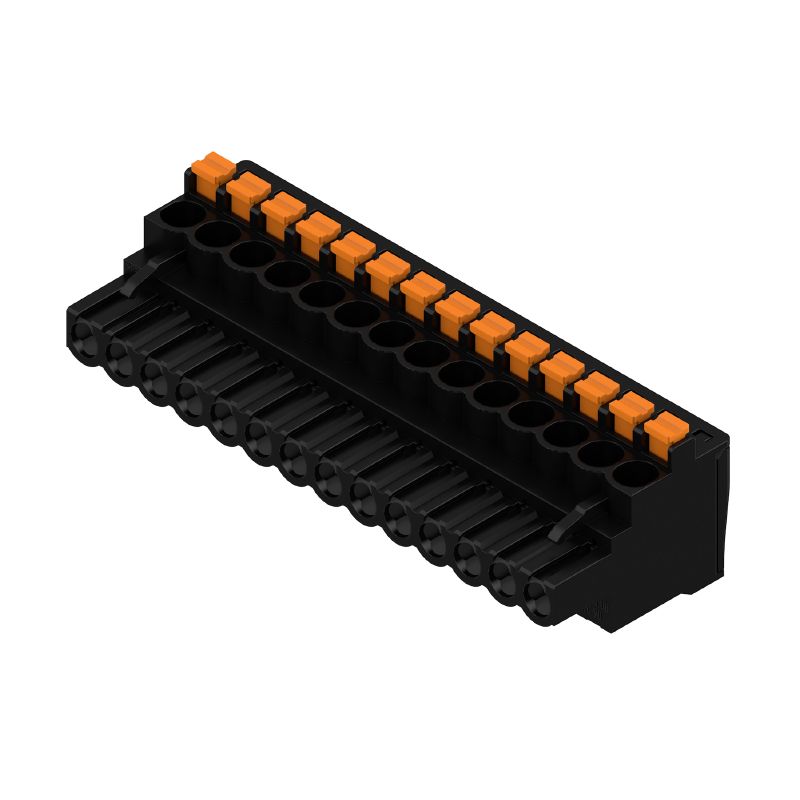

Introducing the BLF 508HC/14/90 SN BK BX, a reliable female plug-in connector ideal for printed circuit boards This connector features a compact design with a pitch of 508 mm and offers 14 poles arranged at a 90° angle Its PUSH IN connection mechanism, assisted by an actuator, simplifies setup and ensures secure connections With a maximum clamping range of 331 mm², it accommodates a variety of wire sizes, and each connector is conveniently packaged in a protective box for safe storage and transport.

Features and Benefits:

•RoHS compliant.

•Touch-safe with protection against finger touch.

•Can be coded for specific applications.

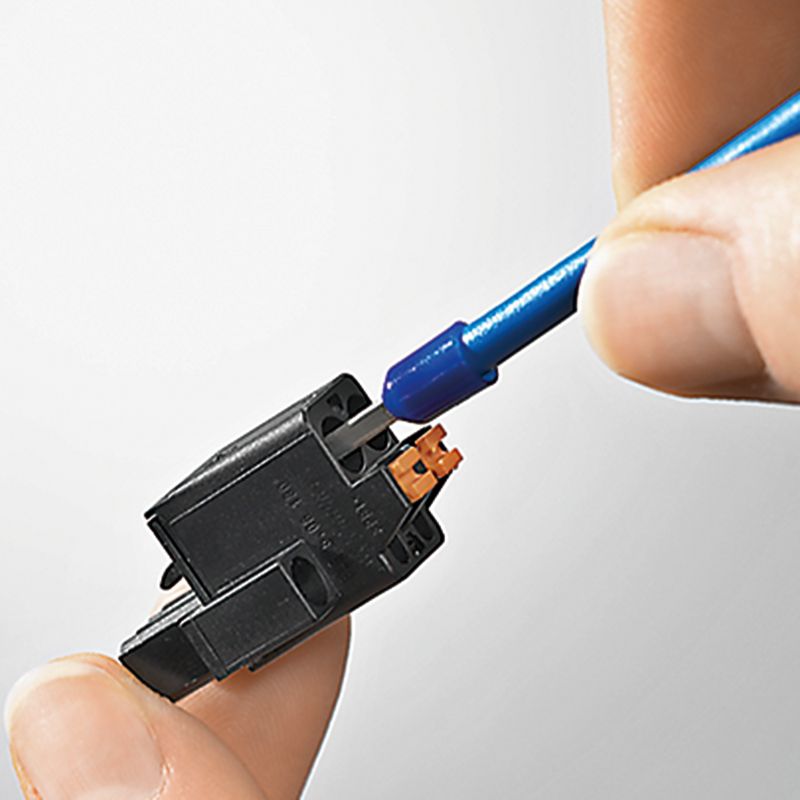

•Easy to use PUSH IN connection method with actuator.

Specifications:

Rated Voltage (IEC)	400 V / 24 A / 0.2 - 2.5 mm²
Rated Current (UL)	300 V / 18.5 A / AWG 26 - AWG 12

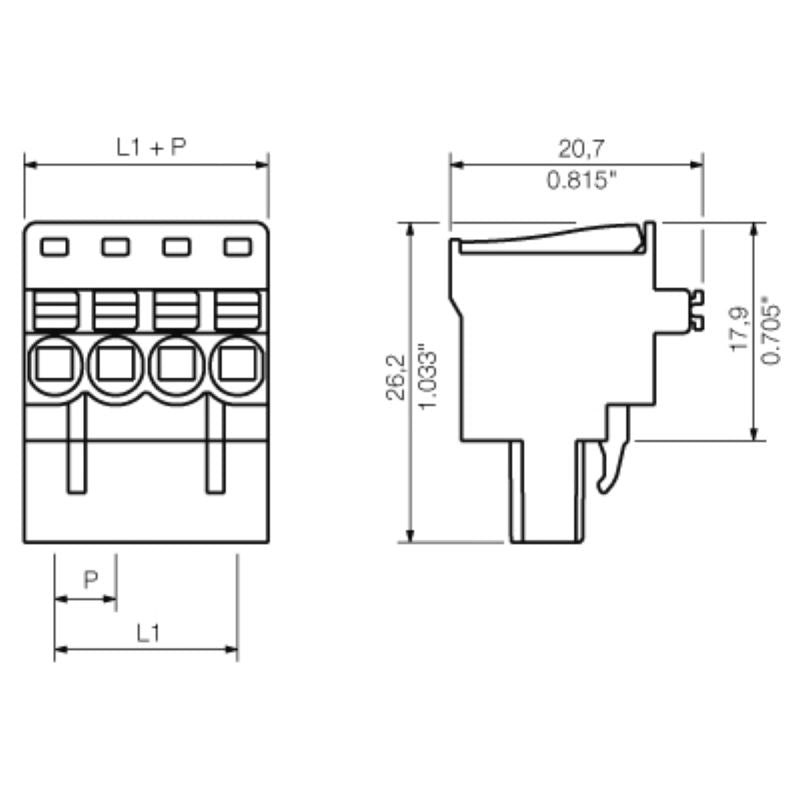

Dimensions	{'Depth': '26.2 mm', 'Height': '20.7 mm', 'Width': '71.12 mm'}
Pitch	5.08 mm
Number of poles	14
Stripping length	10 mm
Material	{'Insulating Material': 'PBT', 'Contact Material': 'Cu-alloy'}

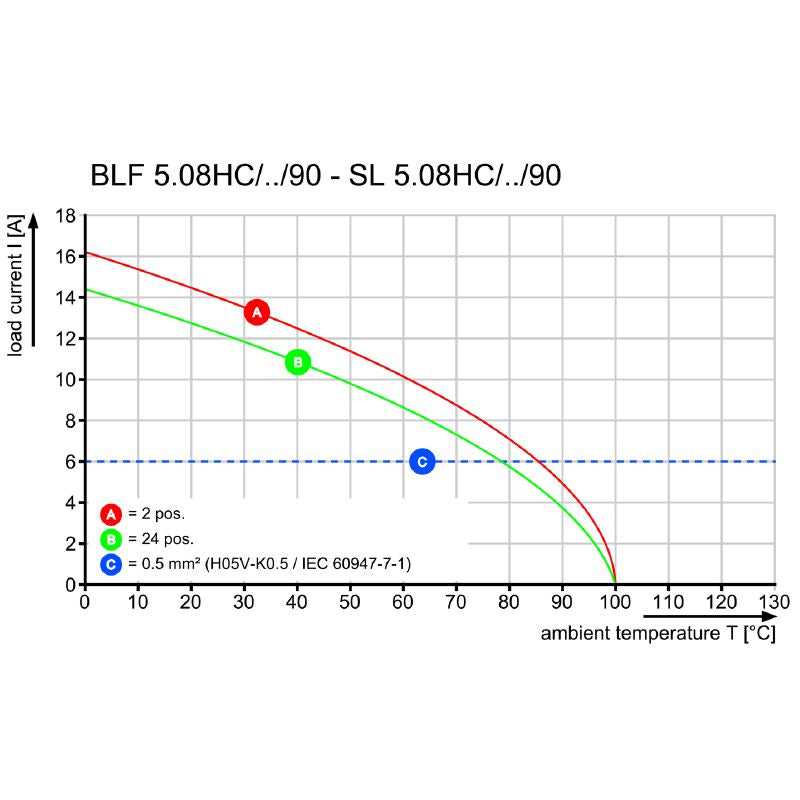

Rated temperature range	{'Installation (min)': '-30 °C', 'Installation (max)': '100 °C', 'Operating (min)': '-50 °C', 'Operating (max)': '100 °C', 'Storage (min)': '-40 °C', 'Storage (max)': '70 °C'}
Plugging cycles	25
Protection degree	IP20
Volume resistance	≤5 mΩ
