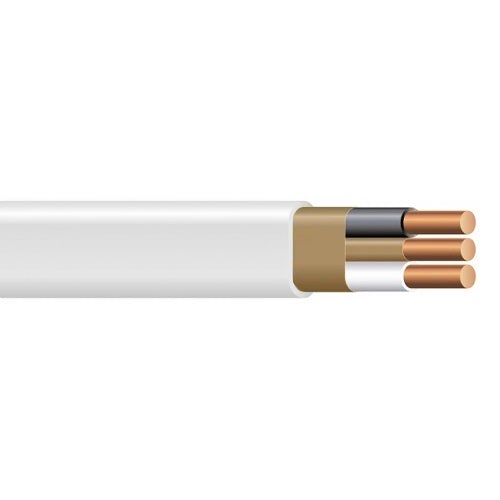

100' 14/2 W/GRND NM-B 600V Solid White

100' 14/2 W/GRND NM-B 600V Solid White

SKU: NES013100   Download PDF

Select a Variant:
  • 100' 14/2 W/GRND NM-B 600V Solid White
Qty:
Now $48.00   Web pricing policy
BEFORE   Now $48.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

Also Known As:

14/2 NM-B Wire, 14/2 NM-B Cable, 14/2 Non-Metallic Sheathed Cable, 14/2 Non-Metallic Sheathed Wire, 14/2 Southwire,14/2 Southwire CU SIMpull, 14/2 28827401.

Conductors:

The cable has 2 conductors with a bare ground wire. The conductors are made of soft Solid bare annealed copper.

Insulation:

The cable has a polyvinyl chloride (PVC) insulation, making it perfect for harsh conditions.

Jacket:

PVC jacket comes in yellow, orange, white, and black colors.



Compatible with Manufacturer
Southwire : White : 288274
Resources
Applications

Type NM-B Copper Building Wire is commonly applied in residential building wiring as a branch circuit for switches and outlets. It can also be used for various building purposes, both inside and outside (the temperature should not exceed 90 °C). NM-B electrical wire can be used in air voids in tile walls. The voltage rating of the cable is 600 volts. The electrical wire is easily installed because it is specifically designed for easier pulling.
Features
Standards:

•ASTM B-3 and B-8
•UL Standard 83
•UL Standard 719
•Federal Specification A-A-59544
•National Electrical Code, NFPA 70. 2011 Edition
•RoHS/ REACH

•Allowable Ampacity for 14/2 W/GRND NM-B : 15 Amps
Specifications
•Size AWG: 14
•Weight per 1000 ft: 57 lbs
•Conductors: 2
•Number of Strands: 1 Solid
•Insulation: PVC
•Insulation Thickness: 19 mils
