0460660061 - RoHS Compliant 5mm Terminal Marker by Weidmueller (Pack of 500)

0460660061 - RoHS Compliant 5mm Terminal Marker by Weidmueller (Pack of 500)

SKU: SKU: 0460660061 Download PDF

Variant:
  • 0460660061 - RoHS Compliant 5mm Terminal Marker by Weidmueller (Pack of 500)
Regular price Now $27.99
Regular price BEFORE   $0.00 Sale price Now $27.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

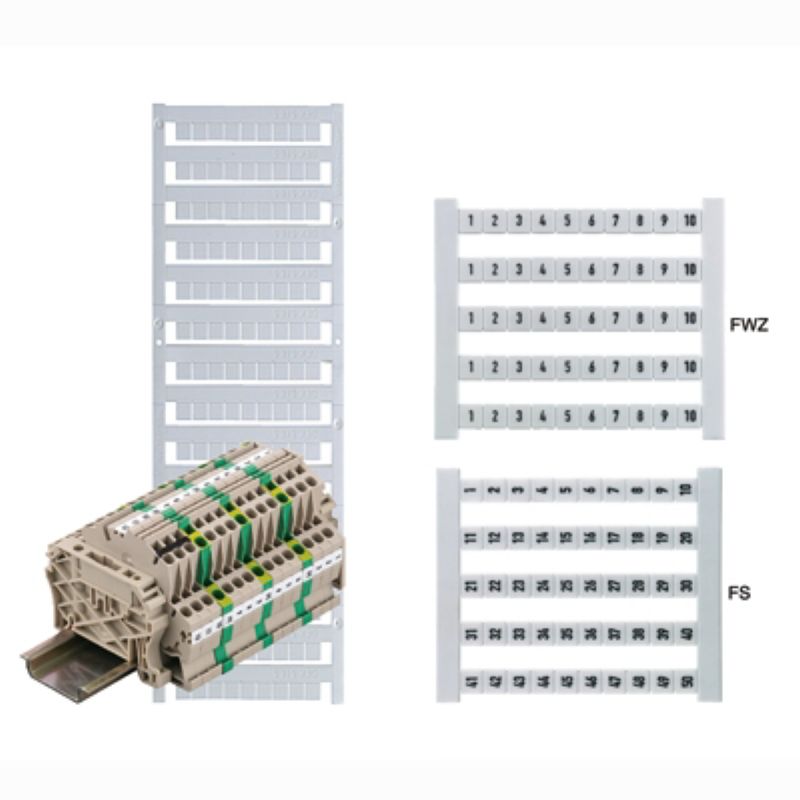

Introducing the DEK 5 FSZ 61-70 terminal marker by Weidmueller With compact dimensions of 5 x 5 mm and a 500 mm pitch, this marker is both efficient and functional It meets RoHS standards, ensuring compliance with environmental regulations Perfect for your terminal marking needs, it combines practicality with eco-friendliness.

Features and Benefits:

    •Constructed from Polyamide 66.

    •Black printing on a white background.

    •Suitable for operating temperatures between -40 and 100 °C.

    •Packaged as cards with individual terminal markers.

    •Printed with numbers using MC Laser method.

    •UL 94 flammability rated V-2.

Specifications:

 Height 5 mm
 Width 5 mm
 Operating temperature range -40...100 °C
 RoHS Compliance Status Compliant without exemption
 REACH SVHC No SVHC above 0.1 wt%
 Product Carbon Footprint 0.001 kg CO2 eq.
 Orientation of print vertical
 Number of markers per combination 1 Card = Terminal marker
 Pitch in mm (P) 5 mm
 Connecting markers Card form supply
 ETIM classification EC000761
 ECLASS classification 27-28-11-01
