0215580000 - Blue 2.5mm² Terminal Block for Dual Cable Connection (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

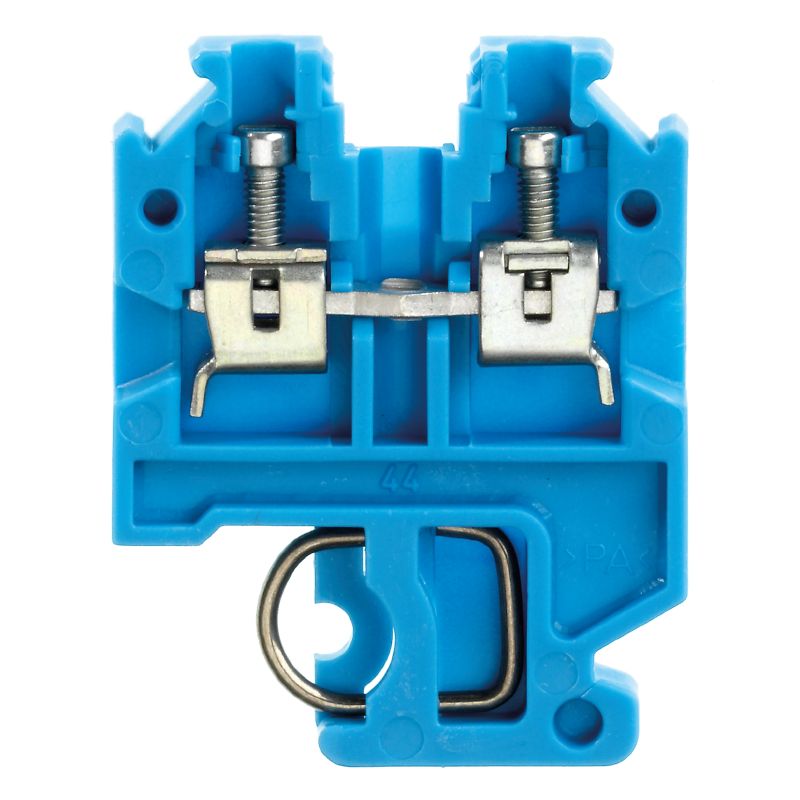

Introducing the SAKD 25N BL feed-through terminal block, expertly designed for secure screw connections This component allows for the connection of up to two cables and is compliant with RoHS standards, ensuring environmentally safe usage Constructed from durable PA 66 material, it showcases a vibrant blue hue The terminal block supports conductor cross-sections of 25 mm² and is rated for a wide operating temperature range, from -50°C to 100°C.

With compact dimensions of 435 mm in depth, 325 mm in height, and 5 mm in width, it is perfect for direct mounting onto TS 32 mounting rails, making it an efficient addition to your electrical systems.

Features and Benefits:

•RoHS compliant.

•Screw connection type.

•Designed for direct mounting.

•V-2 rated per UL 94 flammability standards.

•Utilizes a screwable cross-connection method.

•Provides a maximum clamping range of 4 mm².

Specifications:
