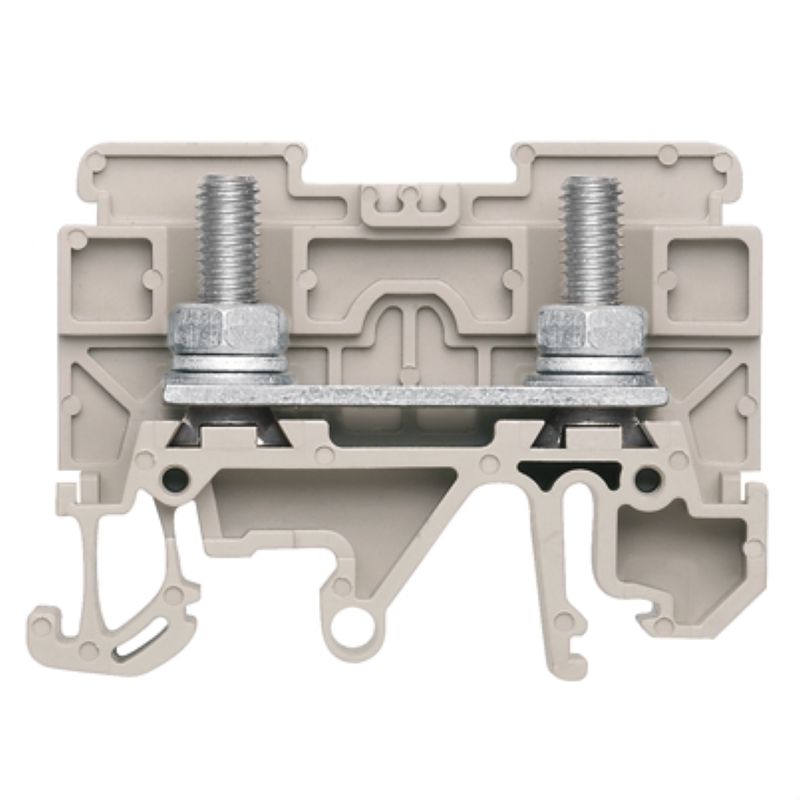

0448360000 - 16mm² RoHS Terminal Block, UL Approved, 47.5mm Deep (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the ST 5/EN terminal block, perfect for applications requiring a rated cross-section of 16 mm² This component is equipped with reliable bolt-type screw terminals and a convenient feed-through connection It meets RoHS compliance and is UL certified (certificate number E60693) for added safety and assurance The dimensions of this terminal block are 475 mm deep, 545 mm high, and 164 mm wide, weighing only 22.

64 grams, making it compact and lightweight It operates efficiently in temperatures ranging from -5 °C to 40 °C, while being capable of withstanding storage conditions from -25 °C to 55 °C Enjoy a robust continuous operating temperature range stretching from -50 °C to 120 °C, ensuring versatility in various environments.

Features and Benefits:

•Compliant with RoHS without exemption.

•Compatible with mounting rails TS 32 and TS 35.

•Requires an end cover plate for installation.

•Designed for side connections with a maximum clamping range of 16 mm².
