Description:

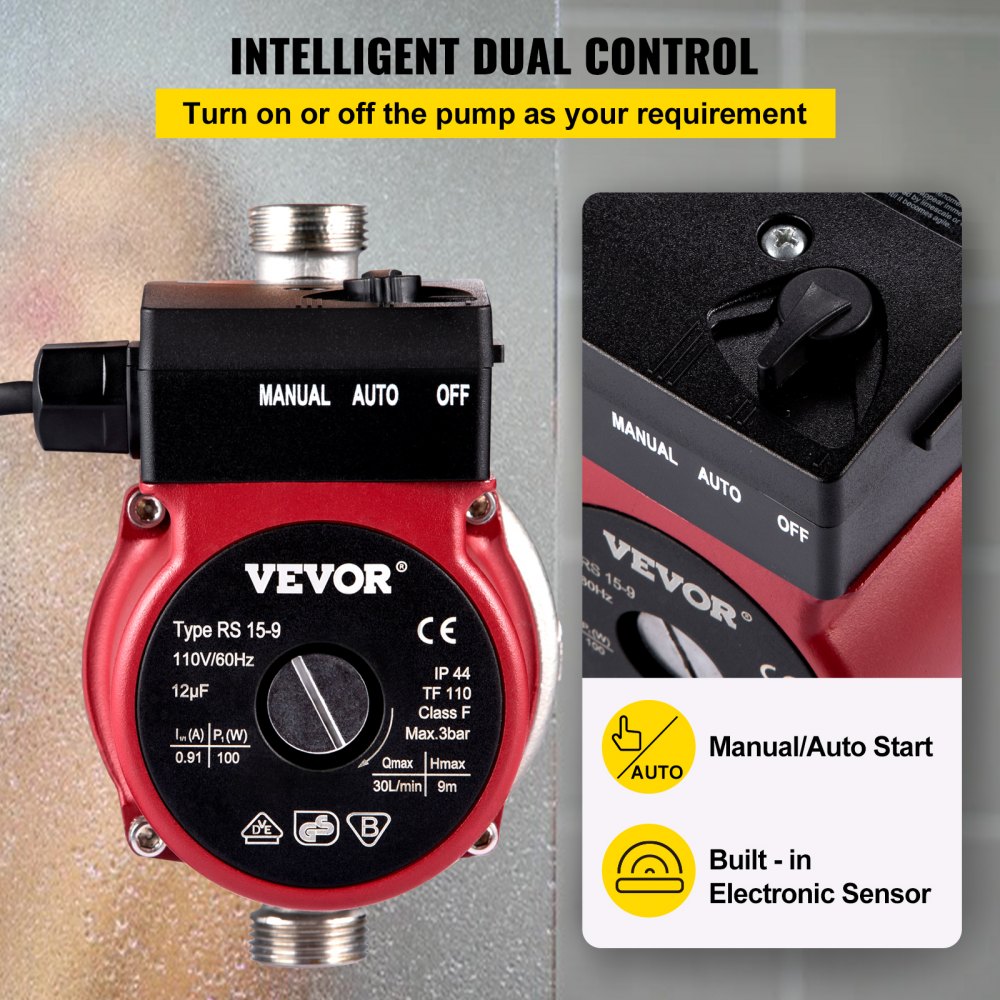

Enhance your home's water heating efficiency with the VEVOR hot water recirculating pump Built with a durable stainless steel pump head and robust aluminum housing, this pump guarantees optimal energy efficiency and low power usage while delivering strong water flow Its whisper-quiet operation makes it perfect for daily family use, and it's an excellent solution for remote properties and cabins Users will appreciate the flexibility of both manual and automatic control settings, providing added convenience.
For best results, installation should be done with a horizontal shaft orientation.
Features and Benefits:

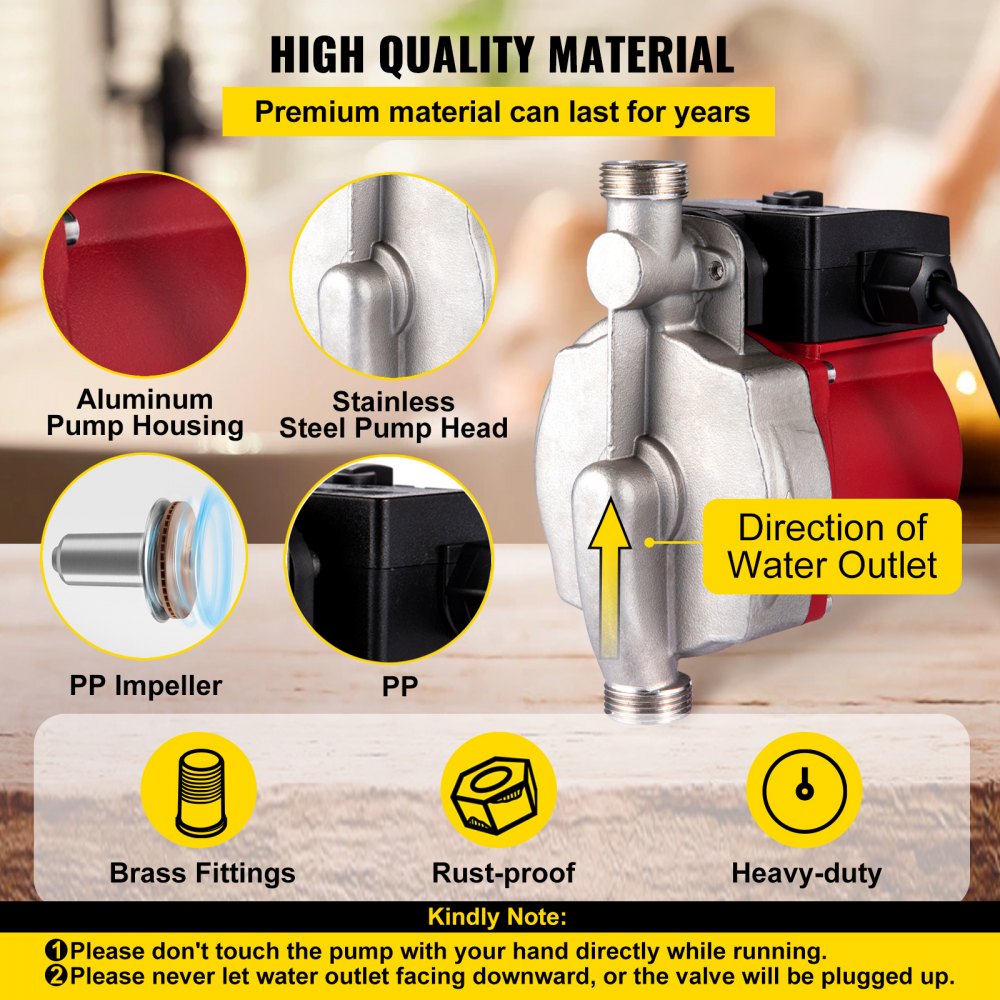

•Constructed from stainless steel and aluminum for durability.
•Powerful flow rate of 8 gallons per minute and a maximum head lift of 36 feet.
•Low noise level of approximately 25dB for quiet operation.

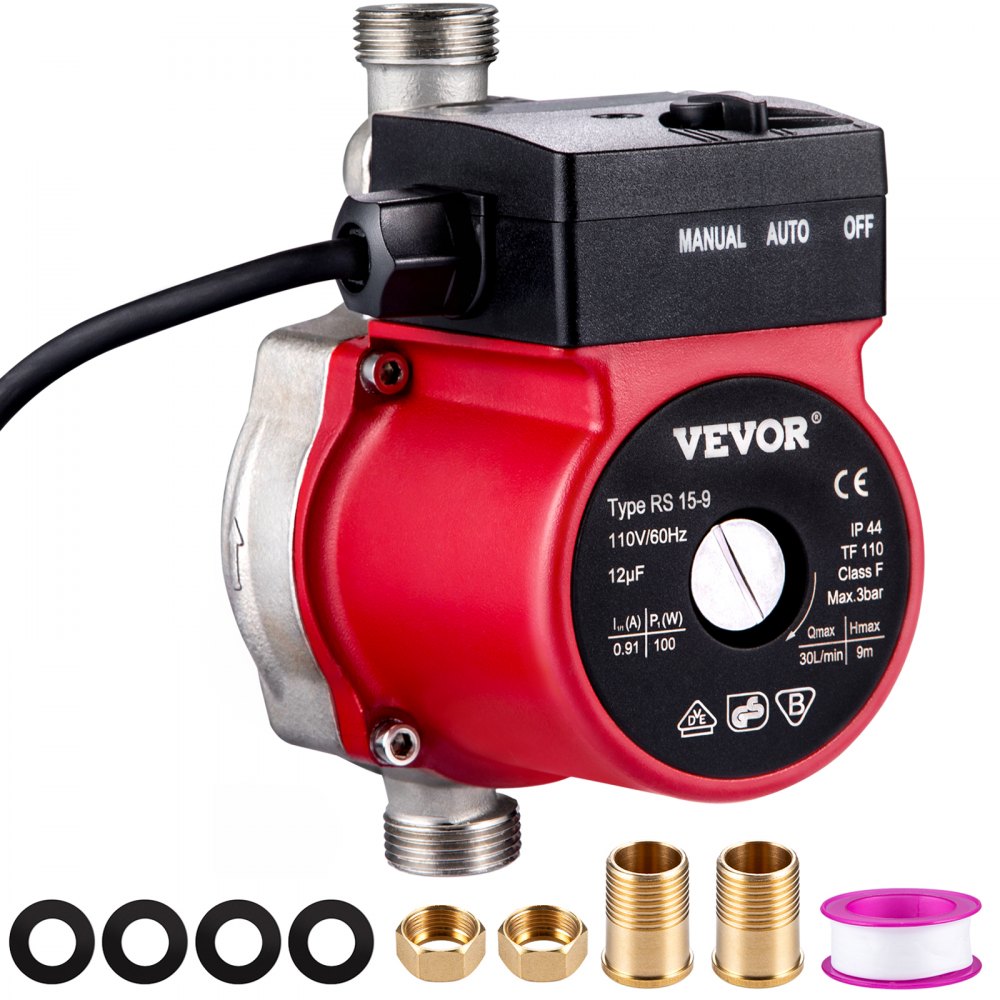

•Quick and effortless installation with brass fittings included.
•Compatible with various water heating systems including solar and electric setups.
•Family water heating systems.
•Solar water heater systems.
•Electric water heater systems.
•Domestic water pipelines.
Specifications:
| Model | VV-BXG-RS15 9SR |
| Power | 120W |
| Voltage | 110V/60HZ |

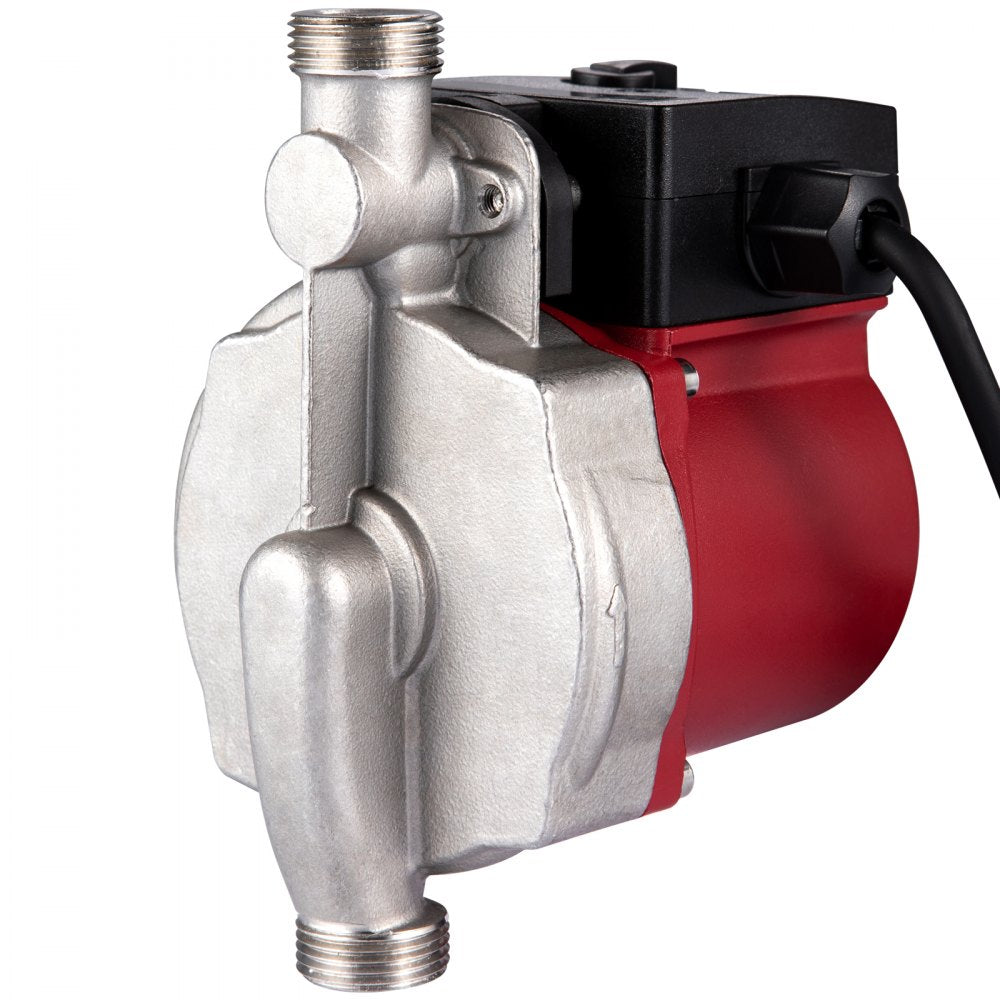

| Pump Head | Stainless Steel |
| Pump Housing | Aluminum |
| Impeller Material | PP |
| Shaft Material | Ceramic |
| Bearing Material | Carbon |
| Noise Level | 25dB |
| Inlet/Outlet Dia. | NPT 3/4" /1.9 cm |
| Max. Flow Rate | 8 Gpm / 30 L/min |
| Max. Head Lift | 36 ft / 11 m |
| Rated Pressure | 1 Bar / 14.5 Psi |
| Max. Pressure | 10 Bar/ 145 Psi |
| Cable Length | 4 ft / 1.25 m |
| Liquid temperature | 32~212℉/0~100℃ |
| Ambient temperature | 32~104℉/0~40℃ |
| Mounting Position | Shaft Horizontal |
| Protection Level | IP44 |
| Insulation Class | F |

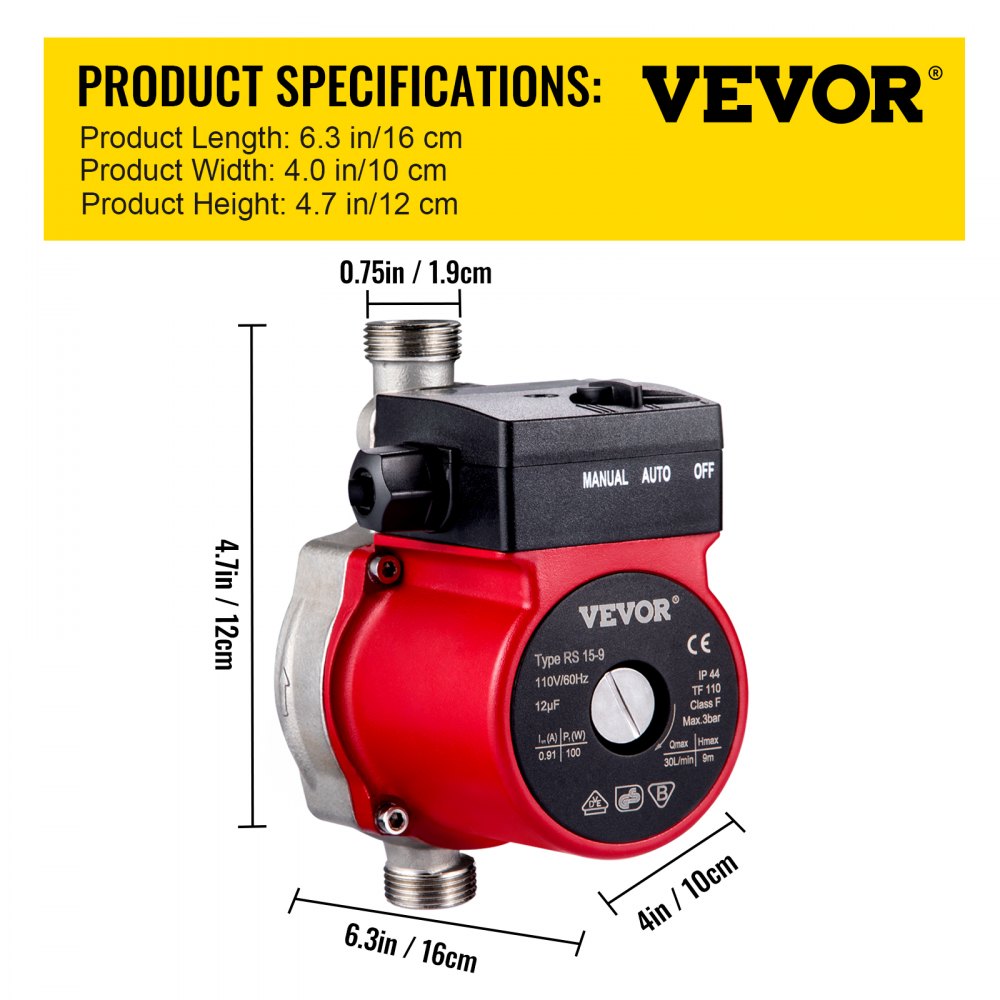

| Product Size | 6.3x4.0x4.7 in / 16x10x12 cm |
