007-F5-7IFC - 23 GPM Cast Iron Hot Water Circulator Pump with 3 Speed Settings
007-F5-7IFC - 23 GPM Cast Iron Hot Water Circulator Pump with 3 Speed Settings
SKU: SKU: 007-F5-7IFC Download PDF
- 007-F5-7IFC - 23 GPM Cast Iron Hot Water Circulator Pump with 3 Speed Settings
- 007-F5-7IFC - 23 GPM Cast Iron Hot Water Circulator Pump with 3 Speed Settings
Couldn't load pickup availability
Description:

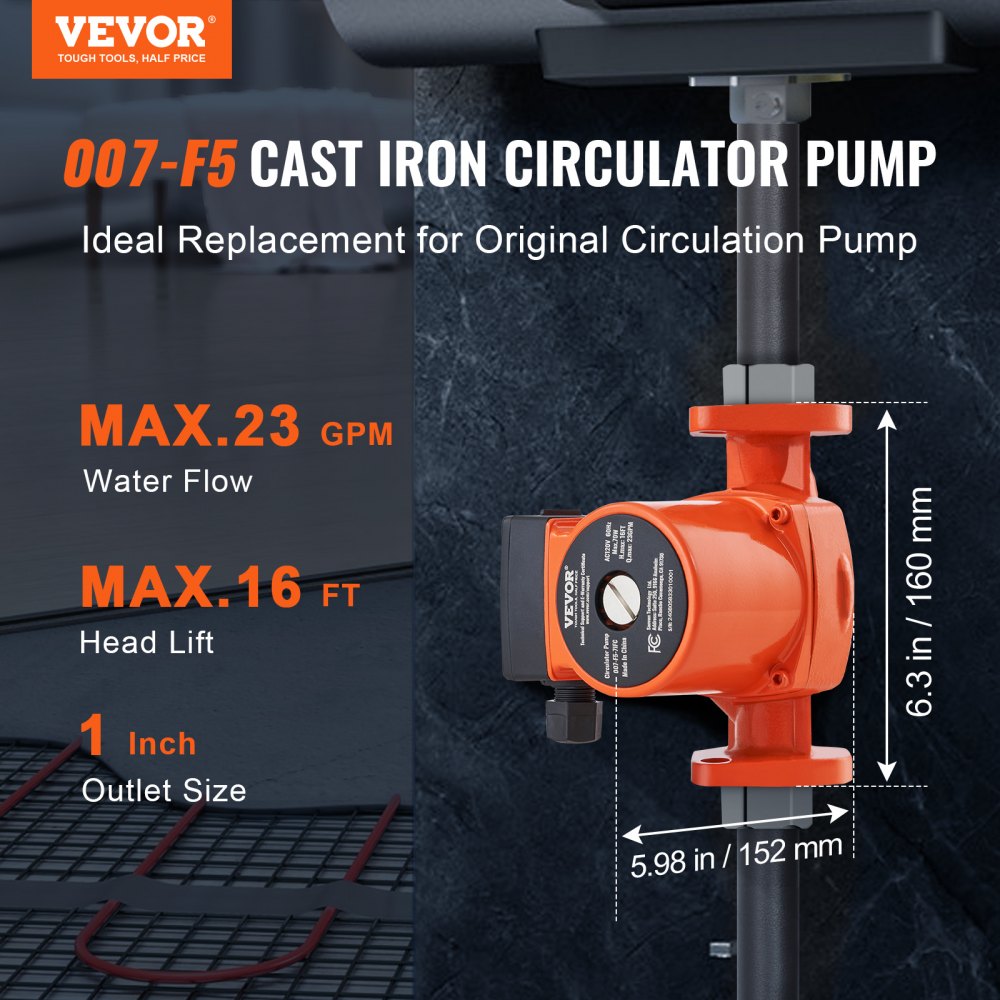

Introducing the 007 Cast Iron Circulator Pump, engineered for optimal hot water circulation with an impressive maximum flow rate of 23 GPM and a head lift of 16 ft It connects easily through a 1" flange, making it an ideal upgrade for your hot water recirculating system This pump boasts three adjustable flow speeds, allowing you to tailor performance to seasonal needs The robust copper motor guarantees efficient water circulation while minimizing energy usage.
Furthermore, it comes equipped with two high-quality seals, designed to prevent leaks and safeguard your heating system against water damage.
Features and Benefits:
•Compatible with underfloor heating systems.
•Minimizes maintenance with built-in check valve.
•Operates quietly at a maximum of 45 dB.

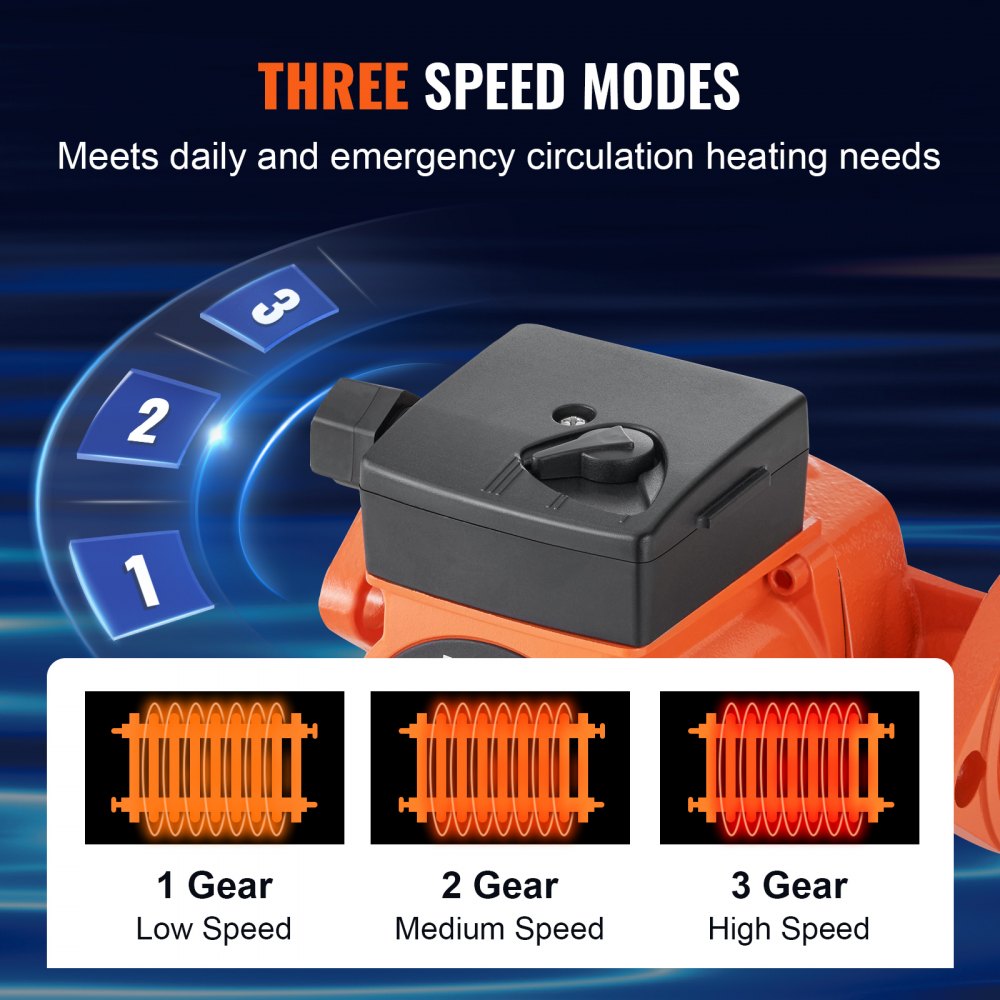

•Three adjustable speed settings for energy efficiency.
•IP44 protected for various temperatures.
•Hot water recirculation in homes.
•Complex piping networks.

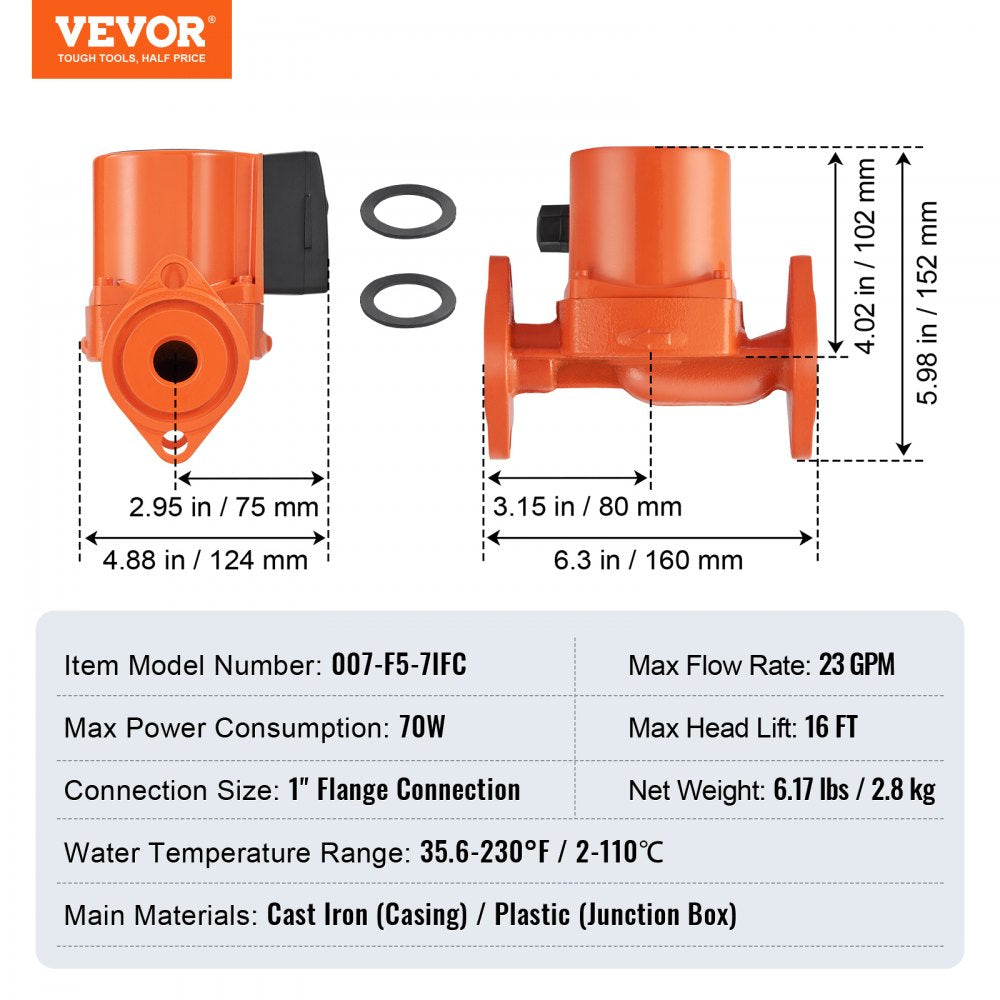

Specifications:
| Max Flow Rate | 23 GPM |
| Max Head Lift | 16 FT |
| Max Power Consumption | 70W |
| Connection Size | 1" Flange |
| Water Temperature Range | 35.6-230°F / 2-110℃ |

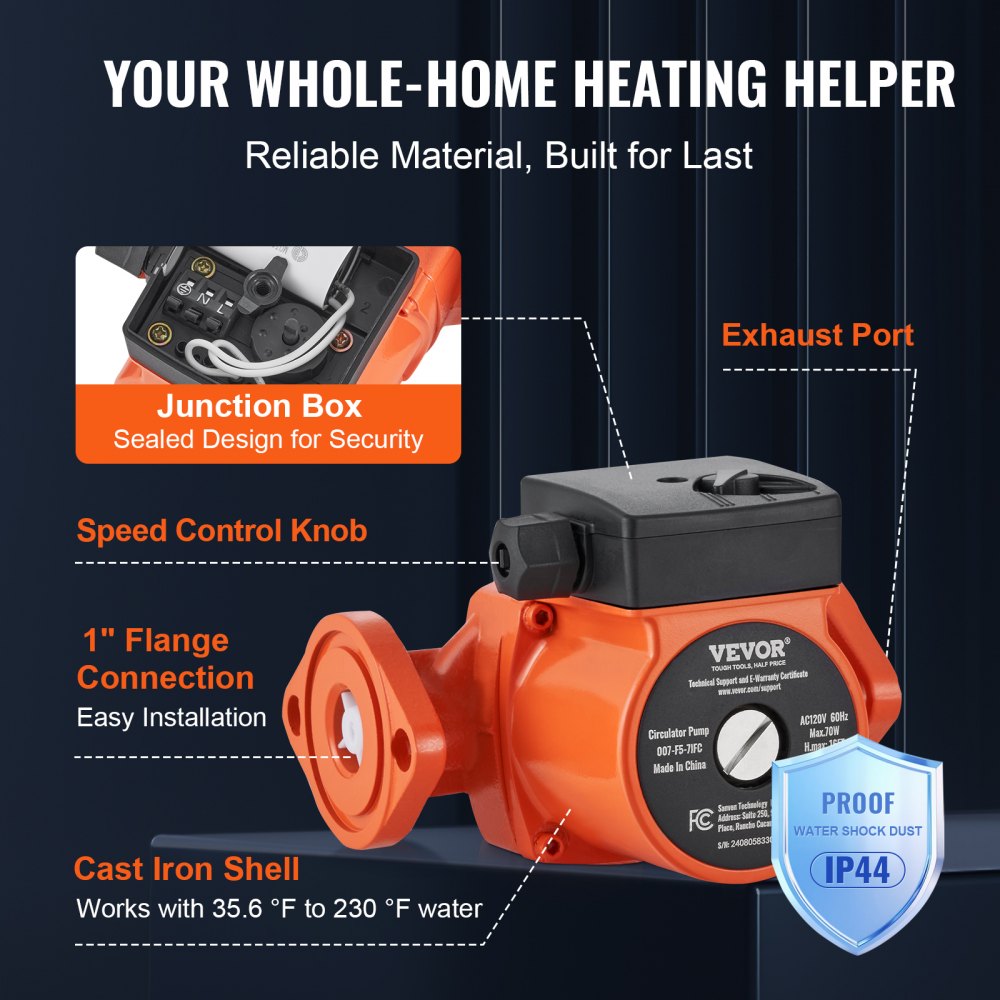

| Main Materials | Cast Iron (Casing) / Plastic (Junction Box) |
