SJOOW Portable Cord 300V

SJOOW Portable Cord 300V

Product Information
Length
Price (Per FT.)
Action
Length
/FT
Price (Per FT.)

$0.37

Action
Product Name
Length
/FT
Price (Per FT.)

$0.41

Action
Product Name
Length
/FT
Price (Per FT.)

$0.59

Action
Product Name
Length
/FT
Price (Per FT.)

$0.44

Action
Product Name
Length
/FT
Price (Per FT.)

$0.55

Action
Product Name
Length
/FT
Price (Per FT.)

$0.59

Action
Product Name
Length
/FT
Price (Per FT.)

$0.57

Action
Product Name
Length
/FT
Price (Per FT.)

$0.72

Action
Product Name
Length
/FT
Price (Per FT.)

$0.89

Action
Product Name
Length
/FT
Price (Per FT.)

$0.83

Action
Product Name
Length
/FT
Price (Per FT.)

$1.10

Action
Product Name
Length
/FT
Price (Per FT.)

$1.41

Action
Product Name
Length
/FT
Price (Per FT.)

$1.61

Action
Product Name
Length
/FT
Price (Per FT.)

$1.56

Action
Product Name
Length
/FT
Price (Per FT.)

$2.09

Action

Description:

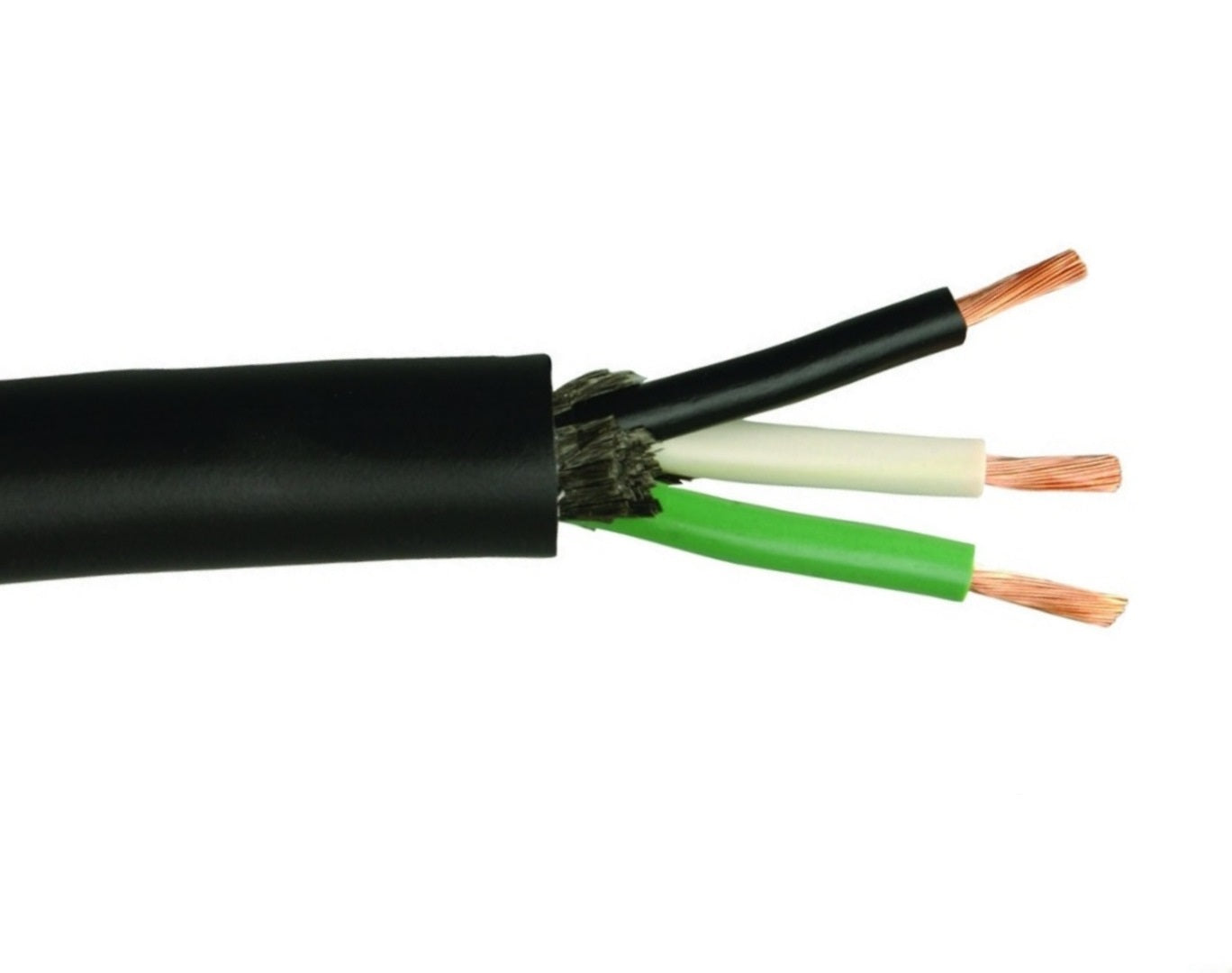

SJOOW Cord is a type of SOOW Cable that is specially made to operate in medium duty applications. The difference between SJOOW and SOOW cable is very minimal, SJOOW cord is junior to SOOW because of its lower voltage rating of 300 volts.

Conductors:
SJO Cable is fitted with bare strands of copper conductor. The copper is of Class K. Full stranding enhances maximum flexibility of the SJOOW cable.

Insulation:
The weather-sensitive copper conductors are insulated with EPDM rubber. Before a jacket is put over the insulated conductors, wax paper-fillers are wrapped around the insulation for easy stripping of the jacket.

Jacketing:
The insulated multi-conductors of the SJOOW Cord is the wrapped with an overall CPE jacket.

Features:
• Oil, moisture and heat resistant EPDM insulator
• Temperature rating of -40°C to 90°C
• 300V Voltage rating
• Very flexible stranding
• Wax-filler wrapping between insulation and jacketing for easy stripping
• Oil, moisture and heat resistant CPE jacket
• Excellent ozone, weather and sunlight resistance
• Water and oil resistant cable
• Outstanding resistance to abrasion, tear and aging.
• Flame resistance jacket
• Color-code insulators – for easy installation.
• Robust and abrasion proof jacket – to withstand the punishing environments

Applications:
• Industrial machinery cabling
• Medium-duty tools and equipment
• Temporary electrical power
• Motors and motor controls
• Lighting installations (both indoor and outdoor)
• Battery chargers
• Push button control systems
• Portable machinery
• Industrial control

Approvals and Certifications:
• UL listed
• CSA certified

Read More

size AWG no. of Conductors Weight Per 1000ft Total (Lbs.) Allowable Ampacity 90C (Amps) Action
18/2 SJOOW 2 50 10 Add to Cart
18/3 SJOOW 3 60 10 Add to Cart
18/4 SJOOW 4 70 7 Add to Cart
16/2 SJOOW 2 60 13 Add to Cart
16/3 SJOOW 3 75 13 Add to Cart
16/4 SJOOW 4 95 10 Add to Cart
14/2 SJOOW 2 75 18 Add to Cart
14/3 SJOOW 3 105 18 Add to Cart
14/4 SJOOW 4 125 15 Add to Cart
12/2 SJOOW 2 105 25 Add to Cart
12/3 SJOOW 3 140 25 Add to Cart
12/4 SJOOW 4 190 20 Add to Cart
10/2 SJOOW 2 210 30 Add to Cart
10/3 SJOOW 3 240 30 Add to Cart
10/4 SJOOW 4 325 25 Add to Cart
