Description:

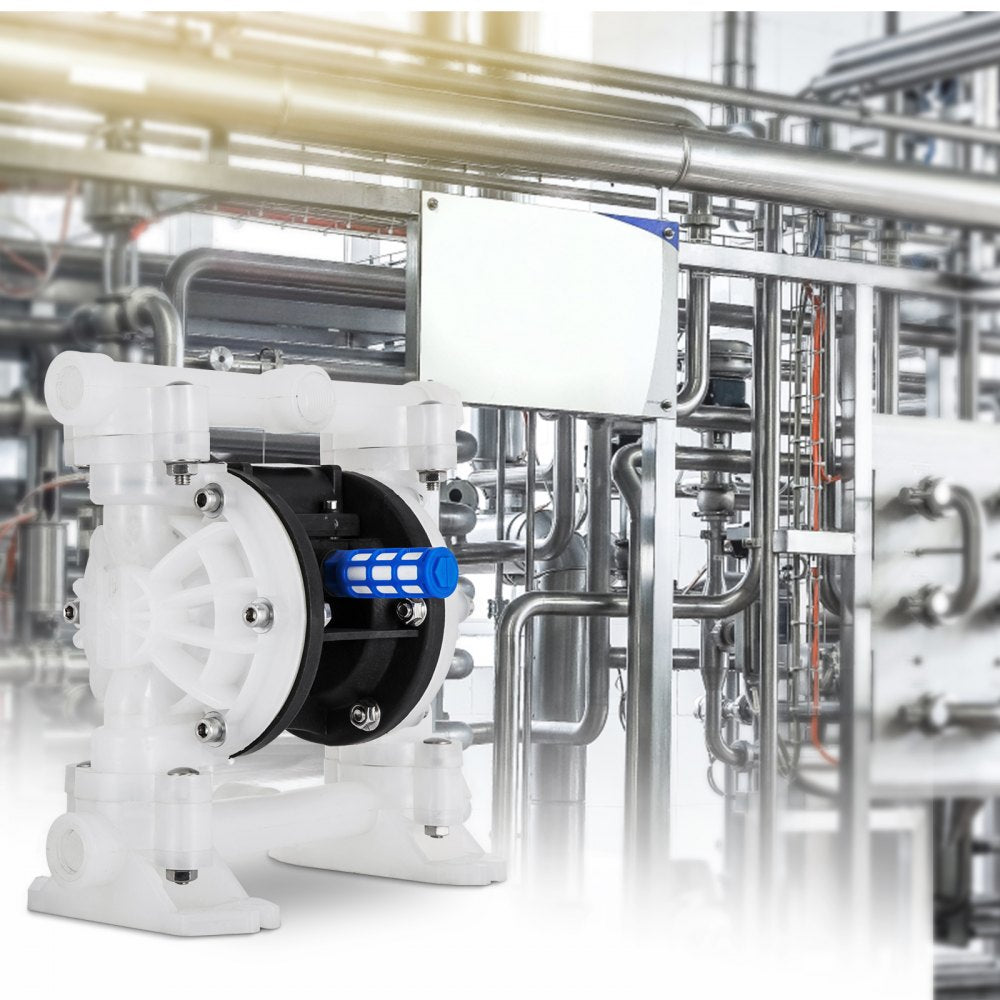

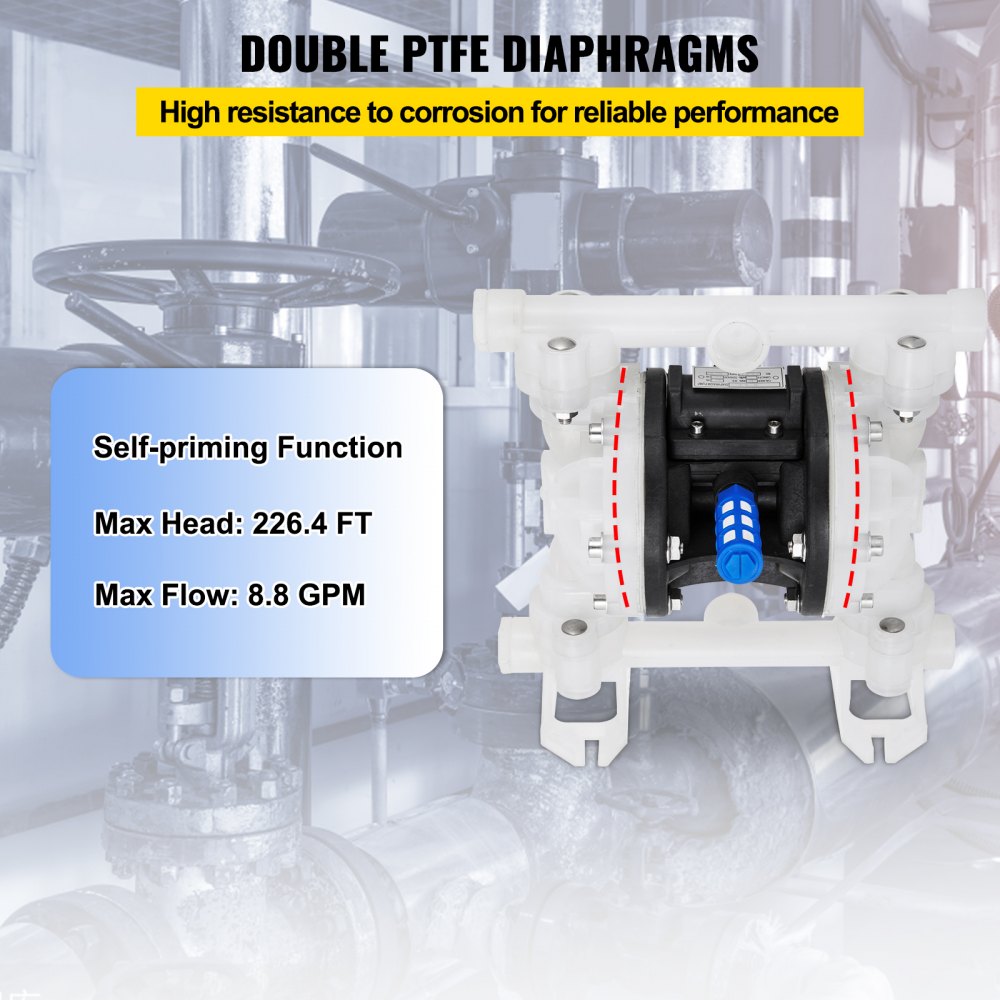

Introducing the Air-Operated Double Diaphragm Pump, a robust solution designed with a polypropylene body and dual PTFE diaphragms, ensuring exceptional corrosion resistance and durability This pump excels at transferring viscous and flammable liquids with an impressive flow rate of up to 88 gallons per minute Featuring sealed ball valves, it offers uninterrupted performance, making it suitable for a wide range of fluid transfer applications.
Moreover, its expertly engineered construction provides a leak-proof operation, guaranteeing dependable functionality throughout its use.
Features and Benefits:
•Self-priming diaphragm pump.
•Corrosion-proof and sturdy construction.
•Easily accessible maintenance.
•Designed for reliable performance.
•Lightweight and portable.
•Excellent for fieldwork.
•Handles a wide range of fluids.
•Fluid transfer in petroleum industry.
•Use in mining and metallurgy.
•Applications in coating and printing.
•Water treatment processes.
•Automobile servicing.

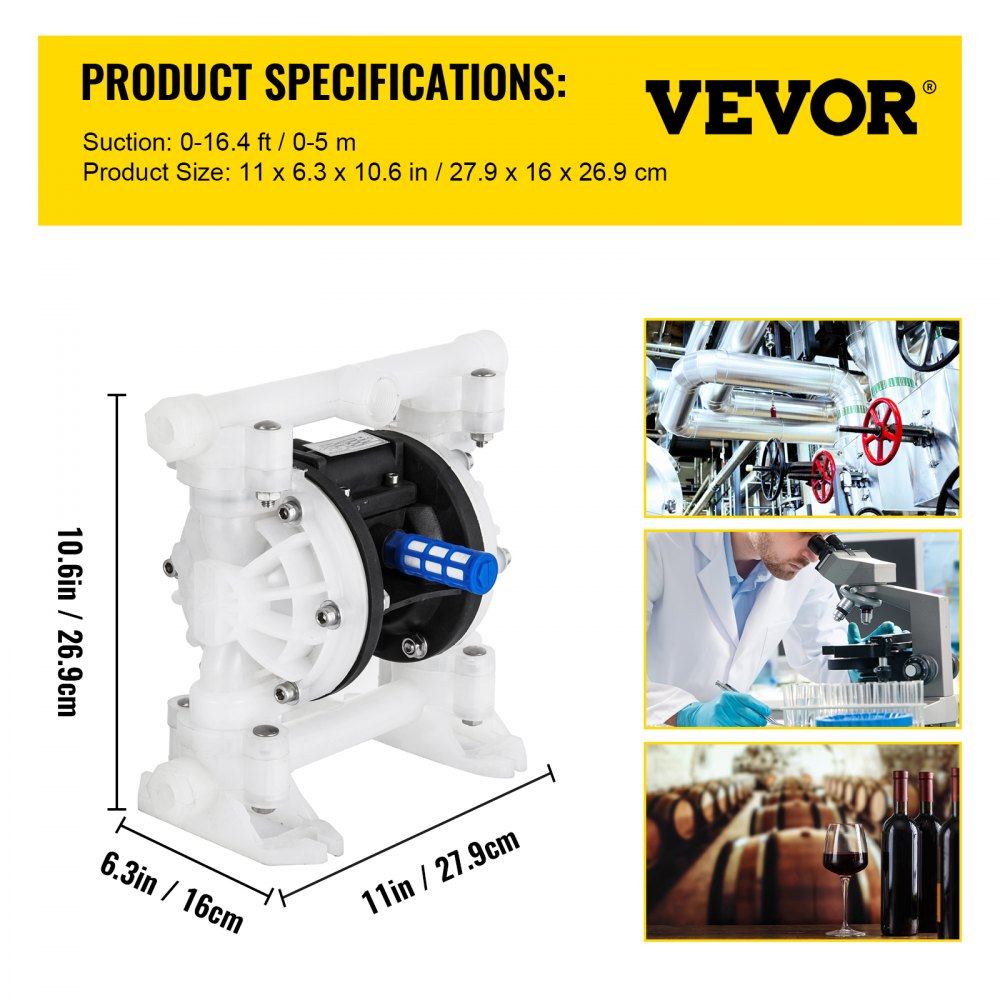

Specifications:
| Model | QBY4-15 |
| Body Material | Polypropylene |
| Diaphragm Material | PTFE |

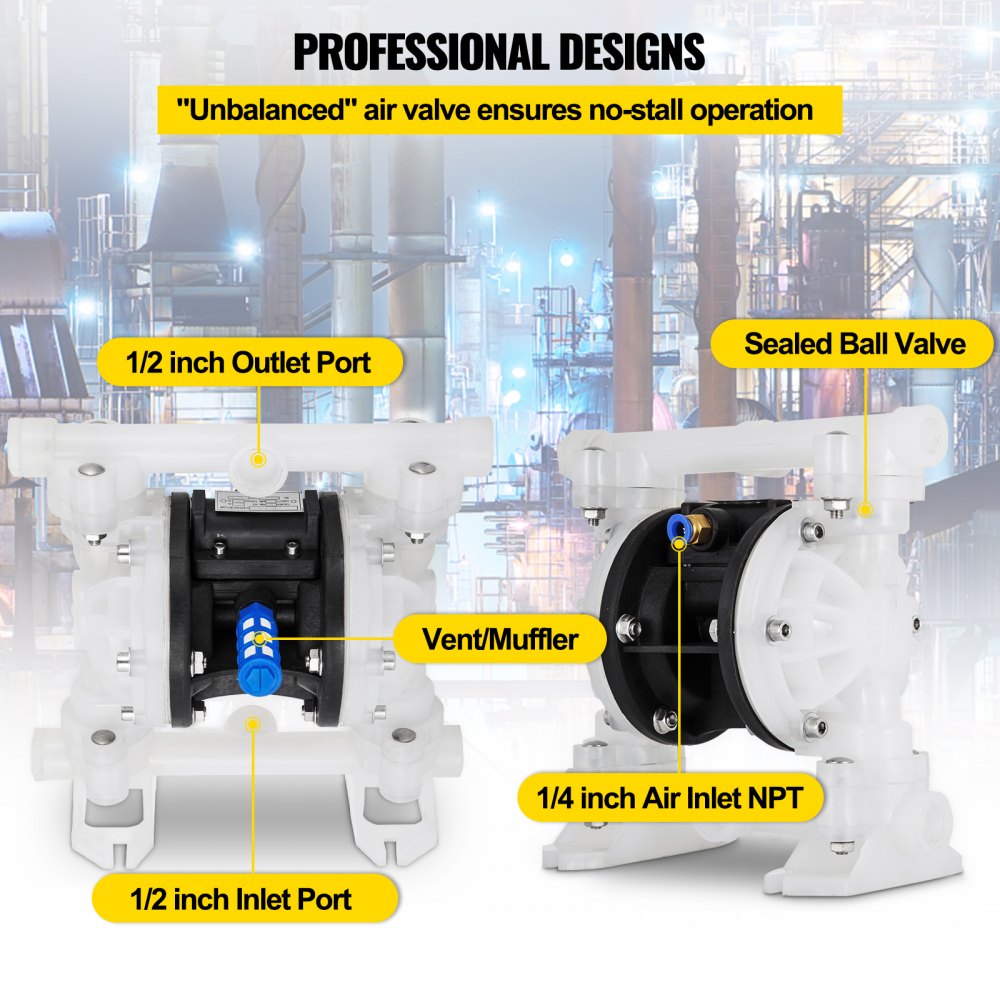

| Inlet Port | 1/2 inch (12.7 mm) |
| Outlet Port | 1/2 inch (12.7 mm) |
| Air Inlet Size | 1/4 inch (6.35 mm) |
| Gas Nozzle | 0.32 inch (8 mm) |
| Max Flow Rate | 8.8 GPM |
| Suction | 0-5 m (0-16.4 ft) |
| Max Suspended Solids | 2.38 mm (3/32 inch) |
| Max Head | 69 m (226.4 ft) |
| Check Seat Material | Polypropylene |

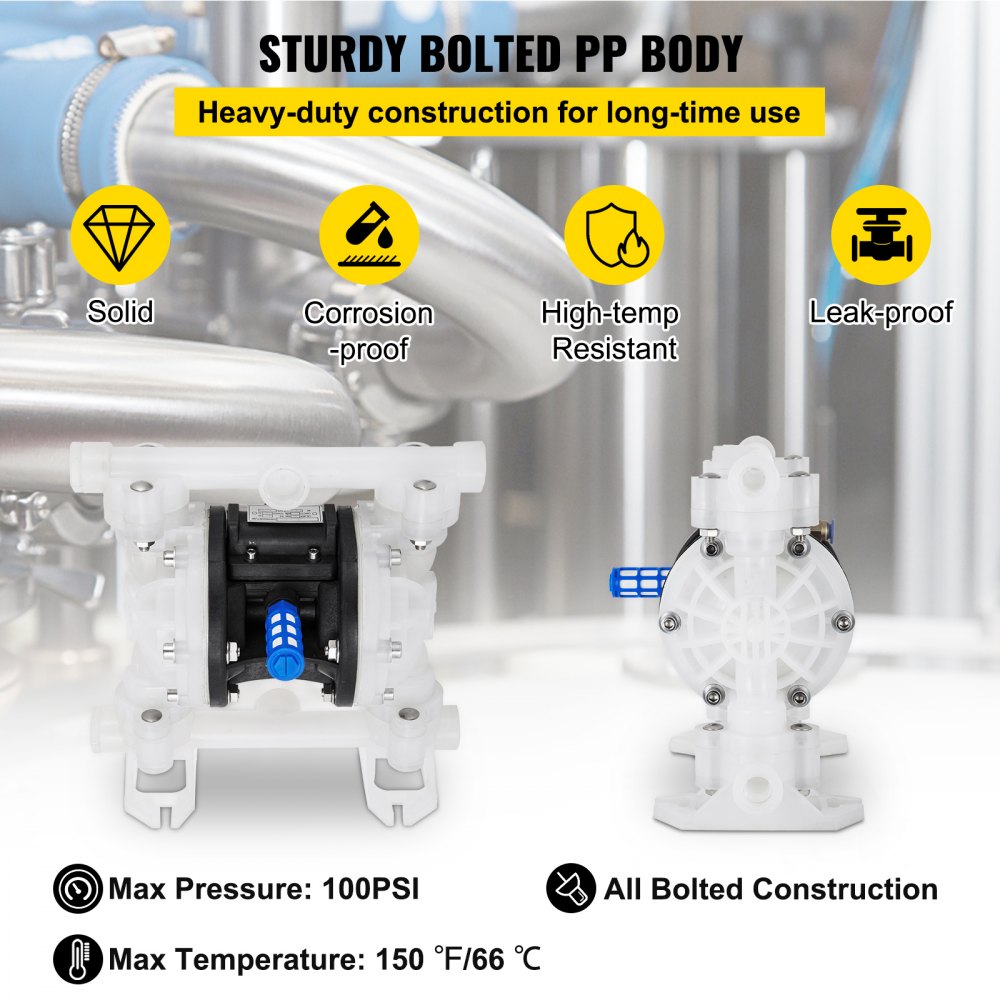

| Max Temperature | 150 ℉/66 ℃ |
| Max Pressure | 100 psi |
