Description:

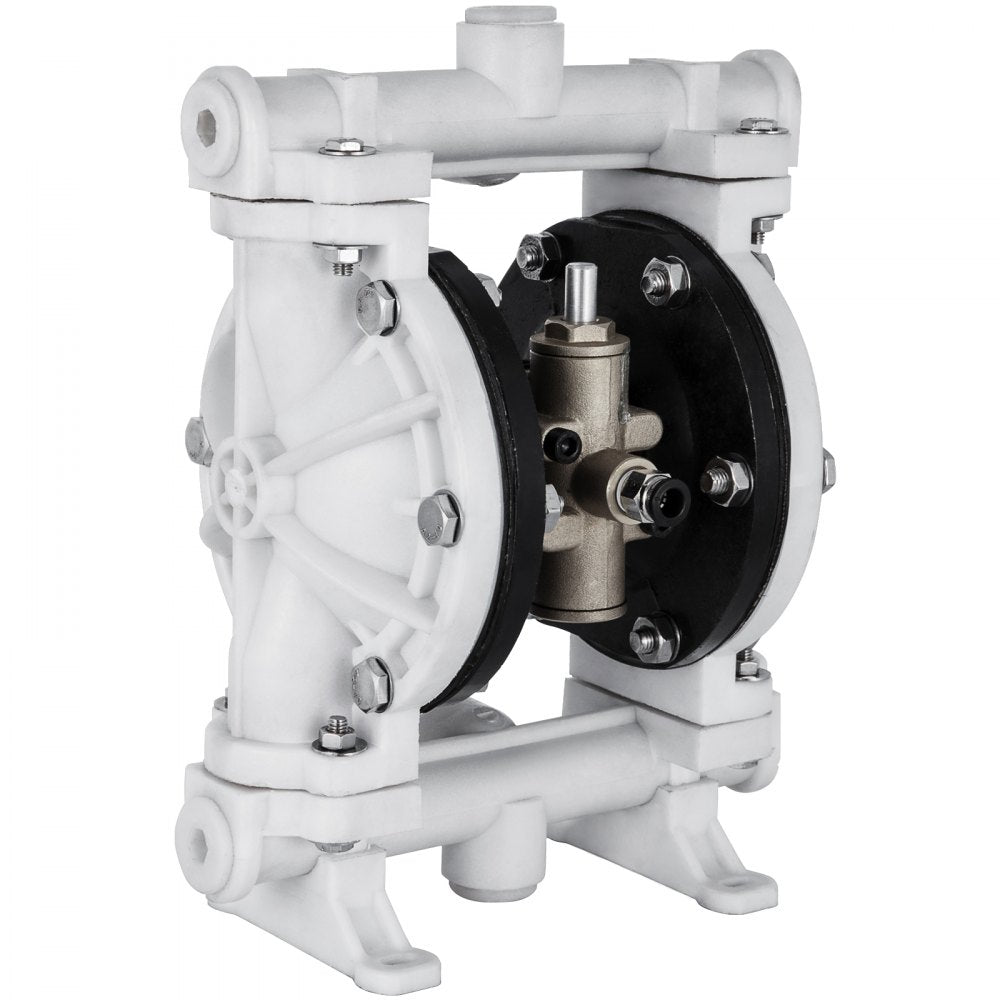

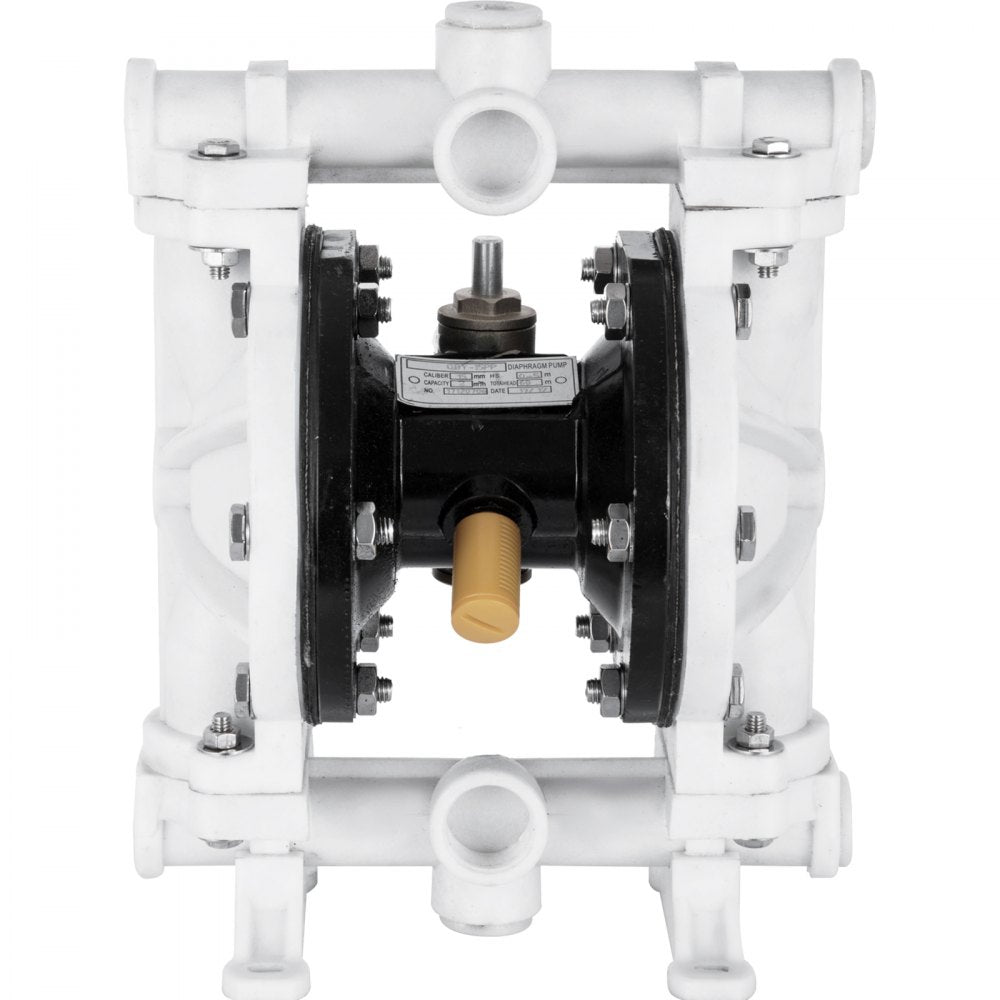

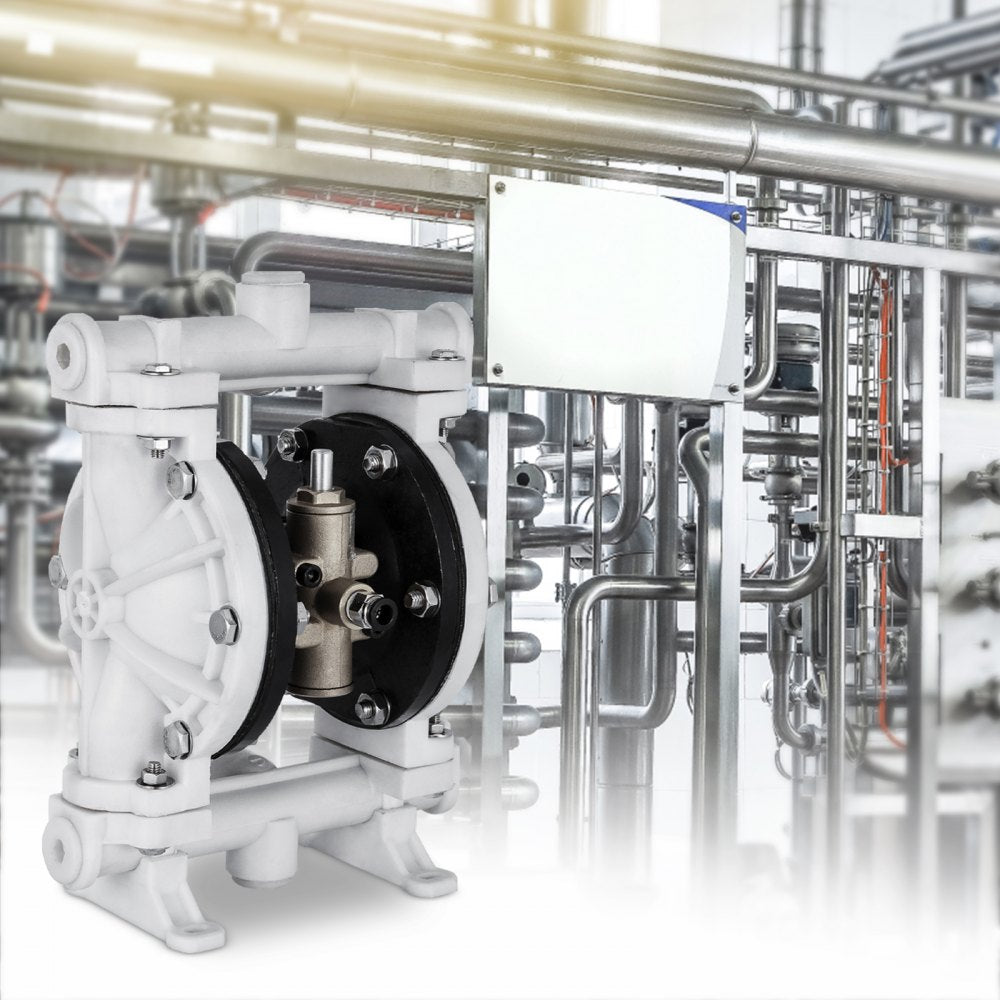

Introducing an air-operated double diaphragm pump crafted from robust polypropylene, designed for optimal durability This pump is engineered with double PTFE diaphragms that enable self-priming while effectively preventing leaks It excels in transferring viscous and flammable liquids, delivering outstanding performance Additionally, the pump is fitted with sealed ball valves and operates seamlessly without stalling, ensuring maximum efficiency and versatility for a wide range of industrial applications.
Features and Benefits:
•Built with premium double PTFE diaphragms for enhanced durability.
•Corrosion-proof and built to withstand challenging environments.
•Efficient performance in transferring various types of fluids.
•Low pulsation air valve promotes rapid changeover and minimizes downtime.
•Used in petroleum, metallurgy, mining, coating, printing, water treatment, and automotive industries.
Specifications:
| Model | QBY-15PP |
| Body Material | Polypropylene |
| Inlet Port | 1/2 inch (12.7 mm) |
| Outlet Port | 1/2 inch (12.7 mm) |
| Air Inlet Size | FNPT 1/4 inch (6.35 mm) |
| Max Flow Rate | 2.5 GPM |
| Suction | 0-5 m (0-16.4 ft) |
| Max Suspended Solids | 2.38 mm (3/32 inch) |
| Max Head | 69 m (226.4 ft) |
| Max PSI | 80 psi |
| Temp. Rating | -20℉ ~ 150 ℉ |
| Self-Priming Dry | 3 m (10 ft) |
| Self-Priming Wet | 4.6 m (15 ft) |
| Ball Material | Santoprene |
