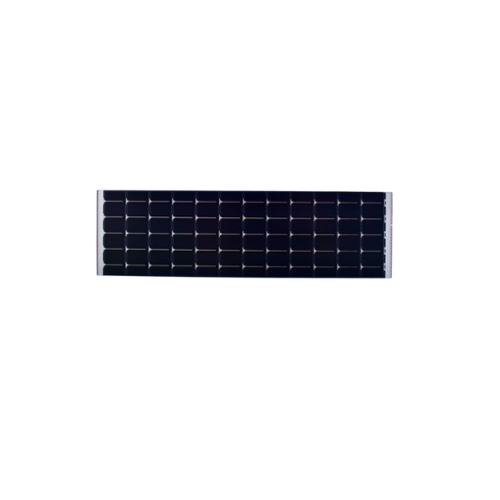

MPT15-75 Thin-Film Amorphous Silicon Flexible Solar Module

SKU: SKU: MPT15-75 Download PDF

Variant:

MPT15-75 Thin-Film Amorphous Silicon Flexible Solar Module

Now $1,023.00

~~BEFORE~~ Now $1,023.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals It’s well suited to collect direct sunlight and indirect light in shady areas A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.

Specifications:

Power (Full Sun):	770mW
Operating Voltage (Full Sun):	15.4V
Current (Full Sun):	50mA
Power (1/4 Sun):	173mW
Operating Voltage (1/4 Sun):	15.4V
Current (1/4 Sun):	11.3mA
Average Voc:	19.0V
Maximum Voc:	22.2V
Isc:	64mA
Dimensions:	253.0 x 73.0 (mm) / 9.96 x 2.87 (in)
Thickness:	0.61mm
