DEV-BLE-NS Solar Development Kit with Nordic BLE

DEV-BLE-NS Solar Development Kit with Nordic BLE

SKU: DEV-BLE-NS Download PDF

Variant:
  • DEV-BLE-NS Solar Development Kit with Nordic BLE
Now $10,999.00
BEFORE   Now $10,999.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

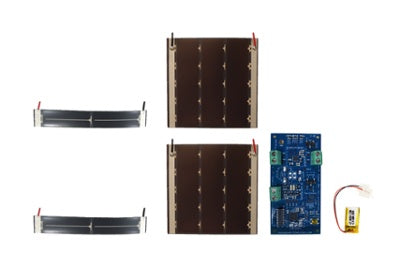

The Solar Development Kit with Nordic BLE (DEV-BLE-NS) is a complete energy harvesting power management solution and Nordic nRF52832 BLE development platform It is perfect for developers looking to design or add PowerFilm’s flexible solar to Nordic BLE products This complete energy harvesting solution can operate in dim indoor environments when using our Indoor Light panels and outdoors using the Classic Application panels.

The kit can efficiently extract power, charge a variety of storage elements, and supply power to the BLE circuit It includes two user-selectable energy harvesting modules, one implementing the BQ25570 PMIC and the other being a dedicated ‘Cap-Charger’ for batteryless applications The kit is fully compatible with Nordic’s development tools and is programmed with a low-power optimized HRM demo.

Features and Benefits:

    •Complete energy harvesting power management solution.

    •Operates in dim indoor environments.

    •Includes two user-selectable energy harvesting modules.

    •Compatible with Nordic’s development tools.

    •Programmed with a low-power optimized HRM demo.

    •Wireless connectivity in modern electronics.

    •BLE Beacons and Tags.

    •Smart Windows and Shades.

    •E-Paper Displays.

    •Wireless Sensors.

    •Telematics.

    •Wearables.

    •Smart Locks.

    •Field and Herd Monitoring.

    •Thermostats.

    •Other low power electronics.

Specifications:

 Indoor Panel Specifications LL200-3.6-75 (1000 lux) 1.354mW, 0.423mA, 3.2V
 Indoor Panel Specifications LL200-3.6-75 (200 lux) 0.206mW, 0.086mA, 2.4V
 Classic Application ONP2.4-15x94 (100% Sun) 45mW, 18.6mA, 2.4V
 Classic Application ONP2.4-15x94 (25% Sun) 10.1mW, 4.2mA, 2.4V
 nRF52832 Nordic BLE Module Fully functional BLE module configured for ultra-low-power operation
 Cap-Charger Custom circuit allows for operation without a storage element; uses two 220uF capacitors
 BQ25570 Energy Harvesting and Power Management IC Uses nano-power boost charging technology to extract energy efficiently
