Description:

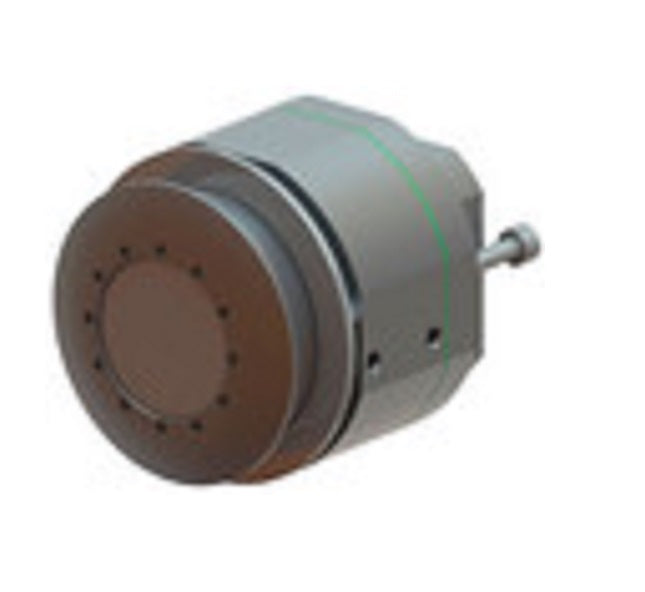

Thermal Sensor Module For S16/S15, 50 mK, B237 (17°).
Suitable for: S16/S15 (to be ordered individually) • Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second • Germanium Lens (included): B237, horizontal/vertical image angle 17°/13° • Image size: 336 x 252 pixels (can be scaled up to 6MP) • IP66, -30 to 60°C (-22 to 140°F) • Housing: black anodized aluminum • Camera connection via MOBOTIX sensor cable (max. 3 m/9,8 ft, to be ordered individually).
Technical Data:
Thermal Sensor Module For S16/S15, 50 mK, B237 (17°).
Suitable for: S16/S15 (to be ordered individually) • Highly sensitive thermal image sensor: NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second • Germanium Lens (included): B237, horizontal/vertical image angle 17°/13° • Image size: 336 x 252 pixels (can be scaled up to 6MP) • IP66, -30 to 60°C (-22 to 140°F) • Housing: black anodized aluminum • Camera connection via MOBOTIX sensor cable (max. 3 m/9,8 ft, to be ordered individually).
Technical Data:
- Compatibility: S15D, S16
- LensType: Germanium lens; can be optionally equipped with a second optical 6MP sensor module (day/color or night/black and white to be ordered separately for easy self-assembly)
- Image Angle horizontal: 17°
- Image Angle vertical: 13°
- Focal Length: equivalent to B237 Optics
- Max. Frame Rate: 9 frames per second (fps) for thermal images, Thermal Overlay and dual images (thermal & optical)
- Max. Image Size: Image size: 336 x 252 pixels (can be scaled up to 6MP)
- Camera Optics: Thermal
- Light Sensitivity: Typ. 50 mK, < 79 mK (50 mK is equal to temperature changes of 0,05°C), pixel pitch 0,017mm (17µm) at 336 x 256 pixel
