Description:

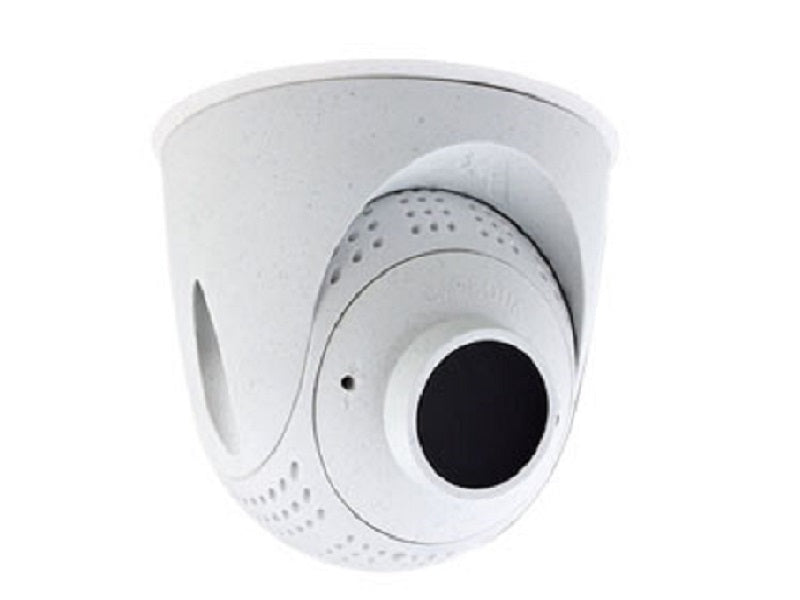

PTMount-Thermal TR For S16/S15, 50 mK, B079 (45°), White.
PTMount-Thermal TR for the S16/S15 • Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F) • NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second • Germanium Lens (2 m/6.6 ft, included): B079 equivalent, horizontal/vertical image angle 45°/32° • Image size: 336 x 252 pixels (can be scaled up to 6MP) • IP66, -30 to 60°C (-22 to 140°F) • Camera connection via MOBOTIX sensor cable (2 m/6.6 ft, included) • Color: White.
Technical Data:
PTMount-Thermal TR For S16/S15, 50 mK, B079 (45°), White.
PTMount-Thermal TR for the S16/S15 • Thermal radiometry (TR): calibrated thermal sensor for temperature events from -40 to 550°C (-40 to 1022°F) • NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometer, uncooled micro bolometer, up to 9 frames per second • Germanium Lens (2 m/6.6 ft, included): B079 equivalent, horizontal/vertical image angle 45°/32° • Image size: 336 x 252 pixels (can be scaled up to 6MP) • IP66, -30 to 60°C (-22 to 140°F) • Camera connection via MOBOTIX sensor cable (2 m/6.6 ft, included) • Color: White.
Technical Data:
- Compatibility: S15D, S16
- LensType: Germanium lens; can be optionally equipped with a second optical 6MP sensor module (day/color or night/black and white to be ordered separately for easy self-assembly)
- Image Angle horizontal: 45°
- Image Angle vertical: 32°
- Focal Length: equivalent to B079 Optics
- Max. Frame Rate: 9 frames per second (fps) for thermal images, Thermal Overlay and dual images (thermal & optical)
- Max. Image Size: Image size: 336 x 252 pixels (can be scaled up to 6MP)
- Camera Optics: Thermal
- Light Sensitivity: Typ. 50 mK, < 79 mK (50 mK is equal to temperature changes of 0,05°C), pixel pitch 0,017mm (17µm) at 336 x 256 pixel
