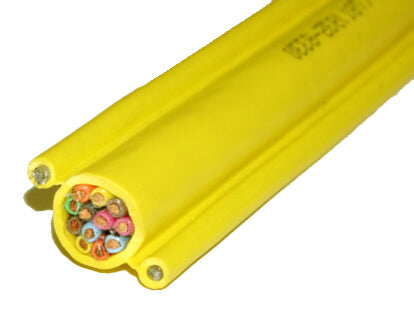

JMC7611616 16 AWG 16 Conductor Dual Steel UL Pendant Cable
JMC7611616 16 AWG 16 Conductor Dual Steel UL Pendant Cable
SKU: SKU:
gauge:
- JMC7611616 16 AWG 16 Conductor Dual Steel UL Pendant Cable
- JMC7611616 16 AWG 16 Conductor Dual Steel UL Pendant Cable
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Sold out
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Product Details
| Technical Specification: | |
| AWG | 16 |
| No. of Conductors | 16 |
| Conductor Stranding | 65/34 |
| Insulation Thickness Inch (mm) | 0.021 (0.53) |
| Jacket Thickness Inch (mm) | 0.063 (1.60) |
| Dimensions Inch (mm) | 0.624 (15.85) |
| Cable Wt lbs/Mft (Kg/Km) | 315 (469) |
| JM Part Number | JMC7611616 |
