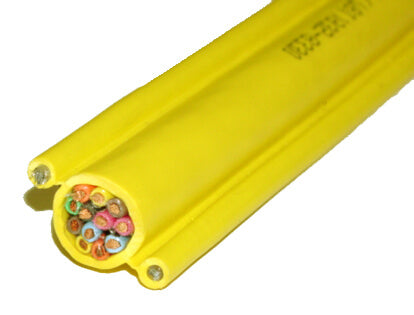

JMC7611608 16 AWG 8 Conductor Dual Steel UL Pendant Cable
JMC7611608 16 AWG 8 Conductor Dual Steel UL Pendant Cable
SKU: SKU:
Select a gauge:
- JMC7611608 16 AWG 8 Conductor Dual Steel UL Pendant Cable
- JMC7611608 16 AWG 8 Conductor Dual Steel UL Pendant Cable
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Sold out
Shipping calculated at checkout.
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Product Details
| Technical Specification: | |
| AWG | 16 |
| No. of Conductors | 8 |
| Conductor Stranding | 65/34 |
| Insulation Thickness Inch (mm) | 0.021 (0.53) |
| Jacket Thickness Inch (mm) | 0.053 (1.35) |
| Dimensions Inch (mm) | 0.490 (12.45) |
| Cable Wt lbs/Mft (Kg/Km) | 216 (321) |
| JM Part Number | JMC7611608 |
