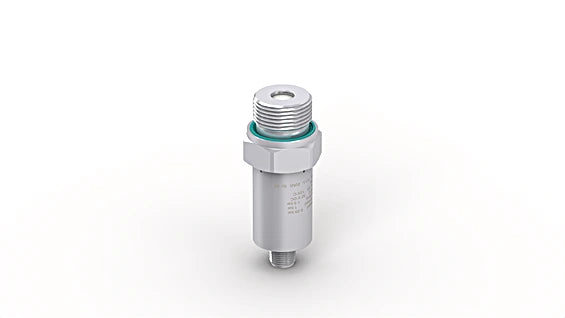

FXGQ001 - Compact Pressure Sensor with Temperature Measurement & IO-Link
FXGQ001 - Compact Pressure Sensor with Temperature Measurement & IO-Link
SKU: SKU: FXGQ001 Download PDF
- FXGQ001 - Compact Pressure Sensor with Temperature Measurement & IO-Link
- FXGQ001 - Compact Pressure Sensor with Temperature Measurement & IO-Link
Couldn't load pickup availability
Description:
Introducing the weFlux² pressure sensors, featuring an advanced measuring cell with an integrated temperature element This innovative design allows for precise measurement of both relative pressure and the temperature of various media Depending on your specific application needs, you can choose between two switching outputs or a combination of one switching output and one analog output for data transmission.
The weFlux² sensors excel in customizable parameters, enabling you to modify sensor settings, filtering options, and output functions You can easily adjust the measurement unit, choosing from bar, PSI, or Pascal, to match your requirements Engineered for compact installation, these sensors deliver outstanding accuracy in both pressure and temperature readings, making them a reliable choice for diverse applications.
Features and Benefits:
•Pressure and temperature measurement with a single sensor.
•Individual parameter configuration via IO-Link 1.1.
•Compact, laser-welded stainless steel 316L housing.
•Temperature-compensated pressure measurement.
Specifications:
| Measuring Range | -0.25 ... 0.25 bar |
| Measurement Type | relative |
| Maximum overload pressure | 1 bar |
| Bursting pressure | 1.5 bar |
| Medium | Liquids, gases |
| Temperature Measurement Range | -40 ... 125 °C |
| Response time (t90) Temp | < 1 s |
| Pressure response time (t90) | < 10 ms |
| Temperature Measurement Accuracy | < ± 1 °C |
| Measuring error (total) | ± 0.5 % |
| Hysteresis | < ± 0.1 % |
| Linearity Deviation | < ± 0.5 % |
| Zero-point error | < ± 0.1 % |
| Repeat Accuracy | < ± 0.1 % |
| Temperature coefficient zero-point | <± 0.05% /10K |
| Temperature coefficient range | <± 0.05% /10K |
| Environmental conditions | {'Temperature of medium': '-40 ... 125 °C', 'Ambient temperature': '-25 ... 80 °C', 'Storage temperature': '-25 ... 80 °C'} |
| EMC | DIN EN 61326-2-3 |
| Shock resistance | 50 g / 11 ms |
| Vibration resistance | 10 g (10...2000 Hz) |
| Electrical Data | {'Supply Voltage': '12 ... 32 V DC', 'Current Consumption': '< 15 mA', 'Number of Switching Outputs': '2', 'Switching Output / Switching Current': '100 mA', 'Switching Output Voltage Drop': '< 1.5 V', 'Number of analog outputs': '1', 'Analog Output': '4...20 mA', 'Signal source': 'Pressure', 'Resolution': '> 11 bit', 'Current Output Load Resistance': '< 500 Ohm', 'Voltage output load resistance': '> 1 kOhm', 'Interface': 'IO-Link V1.1', 'Short Circuit Protection': 'yes', 'Reverse Polarity Protection': 'yes', 'Protection Class': 'III'} |
| Mechanical Data | {'Setting Method': 'IO-Link', 'Sensor element': 'Ceramic membrane', 'Housing Material': 'Stainless steel, V4A (1.4404/316L)', 'Material in contact with media': 'Stainless steel, V4A (1.4404 / 316L), Rubber, FKM, Ceramic', 'Degree of Protection': 'IP65', 'Connection': 'M12 × 1; 4-pin', 'Process Connection': 'G3/4"; front', 'Seal material': 'Fluororubber, FKM'} |
| Safety-relevant Data | {'MTTFd (EN ISO 13849-1)': '1,157.11 a', 'Output Analog Output': 'yes', 'PNP NO': 'yes', 'IO-Link': 'yes', 'Adjustable parameters': {'Analog output': '0...10 V, 4...20 mA', 'Signal source': 'Pressure, Temperature', 'Output': 'Analog Output, Push-pull, NPN, PNP', 'Circuit': 'NC, NC/NO, NO'}, 'Other parameters': '2 switching points'} |
| Standards and certificates | {} |
