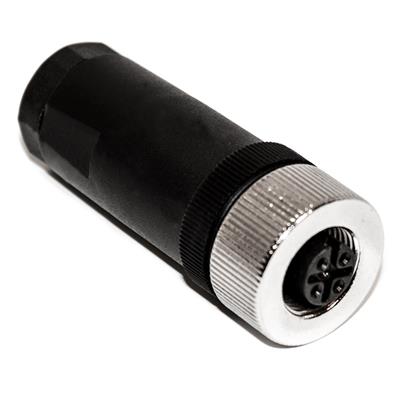

BU-12ZU04-PG7 - M12 A-Coded 4-Position Female Connector, IP67 Rated (Pack of 8)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 connector, designed with a 4-position female straight configuration that expertly accommodates wire gauges from 22 to 26 AWG This connector features an M12 shell size and is coded A, specifically tailored for Micro DC applications It supports a voltage capacity of up to 250 V AC/DC, and its construction utilizes unshielded Nylon 66 for reliable durability This connector is compatible with cable diameters ranging from 4mm to 6mm and boasts an IP67 protection rating, making it resistant to dust and water ingress.

Adhering to IEC 61076-2-101 standards and RoHS compliant, this connector is an excellent choice for your electrical needs.

Features and Benefits:

•Suitable for wire gauges from 22 to 26 AWG.

•Coding A for Micro DC applications.

•Compliant with IEC 61076-2-101 standards.

•RoHS compliant.

Specifications:
