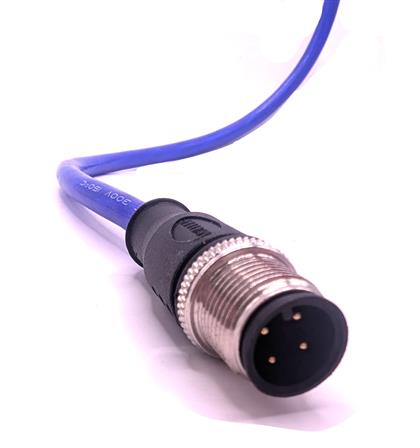

C4A81M010 - 10M Silicone M12 Cordset, 4-Pin Male to Open End (Pack of 4)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Mueller Blue-Flex M12 Cordset, designed for robustness in challenging industrial and commercial settings Featuring a straight male connector that links to an open end, this cordset is built with four pins and incorporates silicone insulated conductors for optimal performance Available in multiple lengths, it provides impressive flexibility with a lifespan of 20 million cycles for both flex and torsion.

The silicone material used in the insulation and jacket enhances its bendability, accommodating various dynamic and static requirements This versatile cable supports different connector orientations and meets essential industry standards, ensuring it can endure high temperatures while remaining reliable in demanding environments.

Features and Benefits:

•Ultra flexible with a bend radius of Static ≥ 4*OD and Dynamic ≥ 8*OD.

•Connector configuration includes male to open end with multiple orientations.

•Compliant with IEC 61076-2-101 Industry 4.0 and NEMA2000 standards.

•FT2 flame-tested rated and IP68 safety rated.

•RoHS 3 compliant.

•Used for all drag chain and robotic applications.

•Ideal for constantly moving applications in power chains or machine assembly lines.

Specifications:
