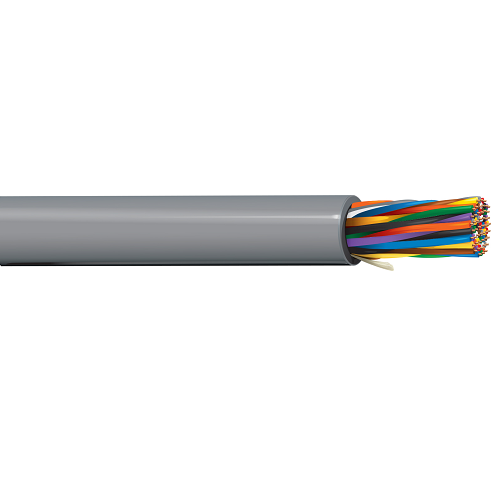

Belden IBDN25P 24 AWG 25 Pair Solid Bare Copper 100MHz Premise Backbone Cable

Description:-

Category 5e Premise Backbone Cable (100MHz), 25 Pair, 24 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, PVC-LS Jacket

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.478 in (12.1 mm)
• Overall Cable Diameter (Nominal): 0.478 in (12.1 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Operating Temperature Range: -40°C To +60°C

Applications:-

• Premise Backbone Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Specifications:-

• Size (AWG): 24
• No. of Pair: 25
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: IBDN25P
