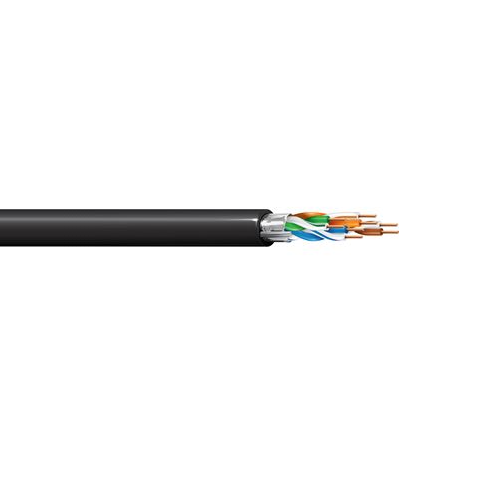

Belden 2138A 24 AWG 4 Pair Solid Bare Copper 100MHz Premise Horizontal Cable

Description:-

CAT5e (100MHz), 4-Pair, F/UTP-Foil shielded, Riser-CMR-CMX Outdoor, Premise Horizontal Cable, 24 AWG solid bare copper conductors, polyolefin insulation, overall Beldfoil shield, PVC jacket, RJ-45 compatible.

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.265 in

Applications:

OSP-Outdoor, Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, 100MHz Category 5e

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -40°C To +75°C

Specifications:-

• Size (AWG): 24
• No. of Pair: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 2138A
