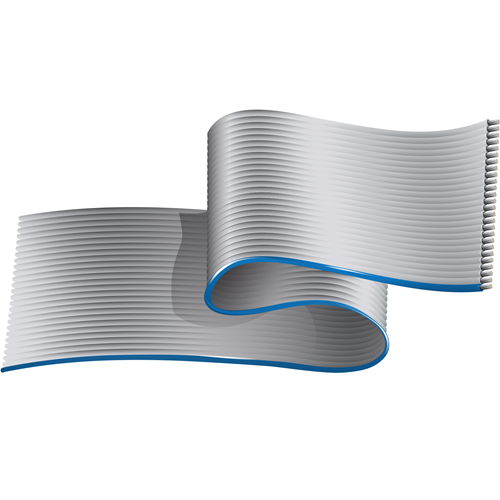

Belden 9L26034 26 AWG 34 Conductor 7x34 Stranding 0.050 in Pitch 300V Flat Gray Ribbon Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 9L26034 26 AWG 34 Conductor 7x34 Stranding 0.050 in Pitch 300V Flat Gray Ribbon Cable

Description:

Flat Gray Ribbon Cable 0.050" Pitch, 9L260XX Series, 34 Conductor, 26 AWG (7x34) Tinned Copper, PVC Insulation.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nominal Wall Thickness: 0.010 in

Color Chart:

• Color: Gray
• Color Chart 1 Table Notes: First Conductor has Blue Stripe

Construction and Dimensions:

• Conductor Spacing: 0.050 +/- 0.002 in
• Conductor Spacing Center-Center Outside: 1.650 +/- 0.011 in
• OuterJacket1, Nominal Width: 1.700 +/- 0.011 in
• OuterJacket1, Nom Thick Flat Section: 0.039 in

Conductor DCR:

• Nominal Conductor DCR: 43 Ohm/1000ft

Standards:

• Voltage Rating: 300 V
• Dielectric Withstand Voltage: 2000 V
• Operating Temperature: -40°C to +105°C

Applications:

• Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Specifications:

• Size (AWG): 26
• No. of Conductor: 34
• Stranding: 7x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9L26034
