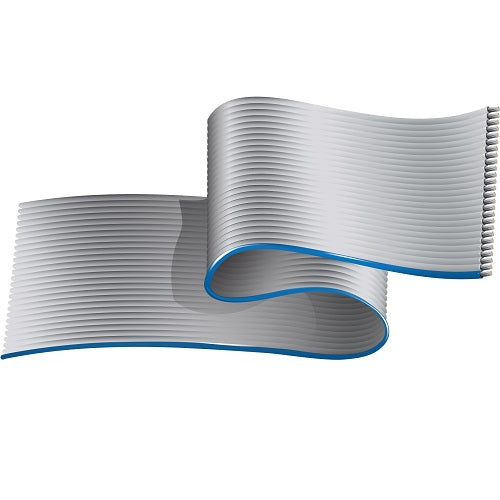

Belden 9L26016 26 AWG 16 Conductor 7x34 Stranding 0.050" Pitch Tinned Copper 300V Flat Gray Ribbon Cable

Description:-

Flat Gray Ribbon Cable 0.050" Pitch, 9L260XX Series, 16 Conductor, 26 AWG (7x34) Tinned Copper, PVC Insulation.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.038 in (0.97 mm)
• Conductor Spacing Center-Center: 0.050 +/- 0.002 in
• Conductor Spacing Center-Center Outside: 0.750 +/- 0.008 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -40°C to +105°C

Applications:-

• Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Specifications:-

• Size (AWG): 26
• No. of Conductors: 16
• Stranding: 7x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9L26016
