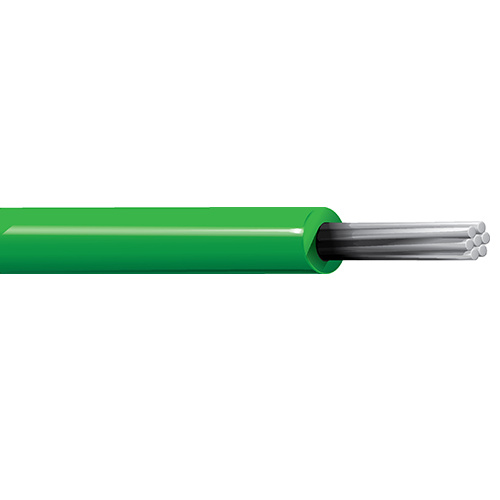

Belden 9981 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire
Belden 9981 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire
SKU: SKU: NES9981 Download PDF
Select a gauge:
- Belden 9981 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire
- Belden 9981 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 9981 18 AWG 1 Conductor 19x30 Stranding Tinned Copper 300V Lead Wire
Description:
Low Temp Plastic Lead Wire, 18 AWG (19x30) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C.
Insulation:
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)
• Overall Cable Diameter (Nominal): 0.066 in (1.7 mm)
Standards:
• Voltage Rating: 300 V RMS
• Operating Temperature: -20°C To +80°C
Applications:
• inter-connection circuits, internal wiring of computers and electronic equipment
Specifications:
• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9981
• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9981
