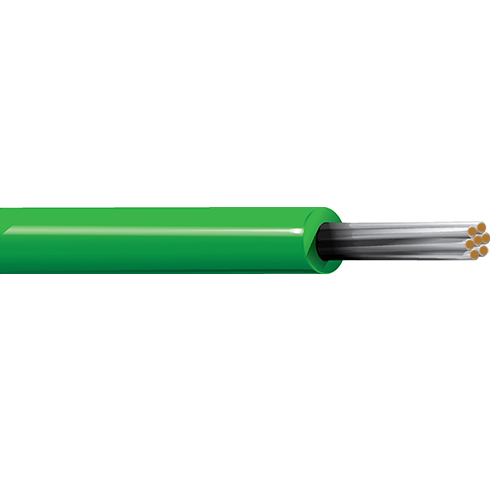

Belden 9930 30 AWG 1 Conductor 7x38 Stranding Tinned Copper 300V Lead Wire
Belden 9930 30 AWG 1 Conductor 7x38 Stranding Tinned Copper 300V Lead Wire
SKU: SKU: NES9930 Download PDF
Select a gauge:
- Belden 9930 30 AWG 1 Conductor 7x38 Stranding Tinned Copper 300V Lead Wire
- Belden 9930 30 AWG 1 Conductor 7x38 Stranding Tinned Copper 300V Lead Wire
Length:
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Belden 9930 30 AWG 1 Conductor 7x38 Stranding Tinned Copper 300V Lead Wire
Description:
Low Temp Plastic Lead Wire, 30 AWG (7x38) Tinned Copper, PVC Insulation, AWM 1007 JQA-F 300V 80C.
Insulation:
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.044 in
• Nominal Wall Thickness: 0.016 in
• Min. Average Wall Thickness: 0.015 in
Standards:
• Voltage Rating: 300 V RMS
Applications:
• inter-connection circuits, internal wiring of computers and electronic equipment, internal wiring of appliances
Specifications:
• Size (AWG): 30
• No. of Conductor: 1
• Stranding: 7x38
• Conductor Material: TC - Tinned Copper
• Part Number: 9930
• Size (AWG): 30
• No. of Conductor: 1
• Stranding: 7x38
• Conductor Material: TC - Tinned Copper
• Part Number: 9930
