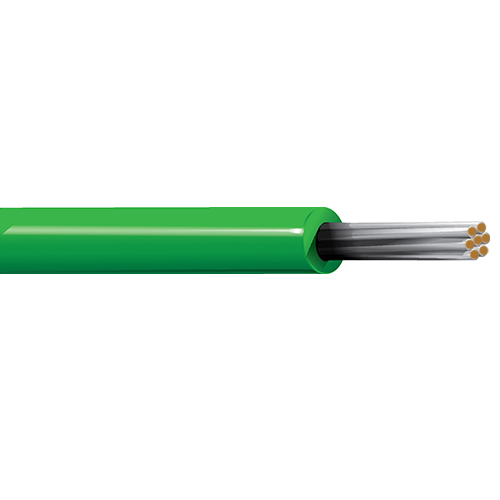

Belden 9923 24 AWG 1 Conductor 7x32 Stranding Tinned Copper 300V Lead Wire

Belden 9923 24 AWG 1 Conductor 7x32 Stranding Tinned Copper 300V Lead Wire

SKU: NES9923   Download PDF

Select a gauge:
  • Belden 9923 24 AWG 1 Conductor 7x32 Stranding Tinned Copper 300V Lead Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.58 /FT   Web pricing policy
BEFORE   Now $0.58 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 9923 24 AWG 1 Conductor 7x32 Stranding Tinned Copper 300V Lead Wire

Description:

Low Temp Plastic Lead Wire, 24 AWG (7x32) Tinned Copper, PVC Insulation, AWM 1007 AWM 1569 CSA TYPE TR-64 TRSR-64.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)
• Overall Cable Diameter (Nominal): 0.056 in (1.4 mm)

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -20°C To +105°C

Applications:

• inter-connection circuits, internal wiring of computers and electronic equipment, internal wiring of appliances

Specifications:

• Size (AWG): 24
• No. of Conductor: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 9923
