Belden 9919 20 AWG 1 Conductor 7x28 Stranding Tinned Copper 300V Lead Wire

Belden 9919 20 AWG 1 Conductor 7x28 Stranding Tinned Copper 300V Lead Wire

SKU: NES9919 Download PDF

gauge:
  • Belden 9919 20 AWG 1 Conductor 7x28 Stranding Tinned Copper 300V Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $0.95 /FT
BEFORE   Now $0.95 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

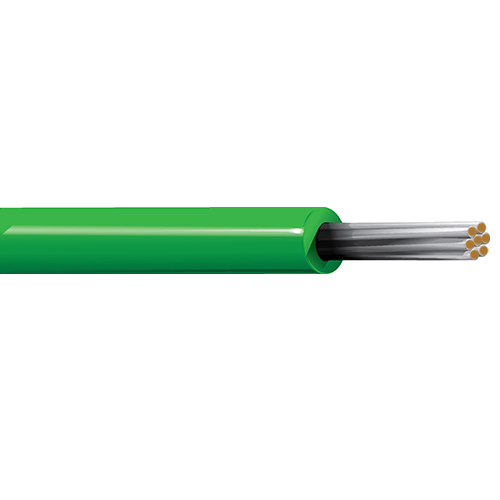

Belden 9919 20 AWG 1 Conductor 7x28 Stranding Tinned Copper 300V Lead Wire

Description:

Low Temp Plastic Lead Wire, 20 AWG (7x28) Tinned Copper, PVC Insulation, AWM 1007 AWM 1569 CSA TYPE TR-64 TRSR-64.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.069 in (1.8 mm)
• Overall Cable Diameter (Nominal): 0.069 in (1.8 mm)

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -25°C To +105°C

Applications:

• inter-connection circuits, internal wiring of computers and electronic equipment, internal wiring of appliances

Specifications:

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Part Number: 9919
