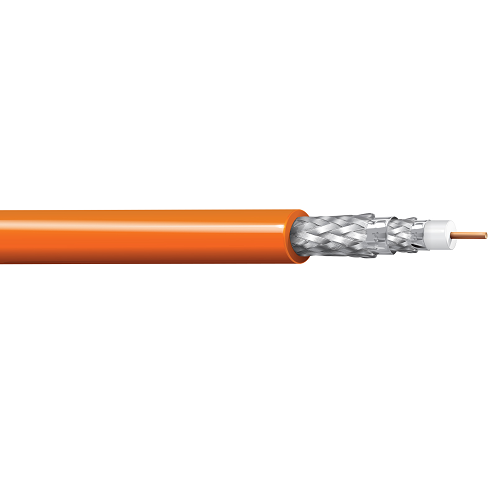

Belden 9880 12 AWG 1 Conductor Solid Bare Copper 300V Coax Cable

Description:-

IEEE 802.3 Ethernet Thicknet 10BASE5, DEC p/n 17-00451-00, 12 AWG solid 0.086" bare copper conductor, foam polyethylene insulation, Duobond IV quad shield (100% coverage), PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.243 in (6.17 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 94%

• Layer: 3
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 4
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.405 in (10.3 mm)

Standards:-

• UL Voltage Rating: 300 V RMS, 30 V RMS
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -40°C To +60°C

Applications:-

• Thick Ethernet

Specifications:-

• Size (AWG): 12
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.086 in
• Conductor Material: BC - Bare Copper
• Part Number: 9880
