Belden 9815 20 AWG 1 Conductor 7x28 Stranding 600V Twinax Cable
Belden 9815 20 AWG 1 Conductor 7x28 Stranding 600V Twinax Cable
SKU: SKU: NES9815 Download PDF
gauge:
- Belden 9815 20 AWG 1 Conductor 7x28 Stranding 600V Twinax Cable
- Belden 9815 20 AWG 1 Conductor 7x28 Stranding 600V Twinax Cable
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Regular price
Now $5.21 /FT
Regular price
BEFORE
Sale price
Now $5.21 /FT
Unit price
per
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
Couldn't load pickup availability
Product Information
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

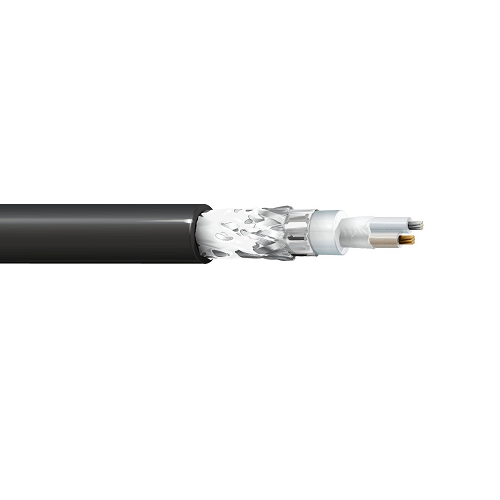

Belden 9815 20 AWG 1 Conductor 7x28 Stranding 600V Twinax Cable
Description:-
100 Ohm Twinax, 20 AWG stranded (7x28) 0.037" one tinned/ one bare copper conductors, polyethylene insulation, Duofoil + tinned copper braid shield (95% coverage), high-density polyethylene jacket.
Insulation:-
• Material: PE - Polyethylene
• Nominal Wall Thickness: 0.024 in
Inner Jacket:
• Material: PE - Polyethylene
• Nominal Diameter: 0.236 in
• Nominal Wall Thickness: 0.035 in
Outer Shield:-
• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%
• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%
• Outer Shield Table Notes: Polyethylene Grease
Outer Jacket:-
• Material: PE - Polyethylene
• Nom. Diameter: 0.33 in
• Nominal Wall Thickness: 0.034 in
Standards:-
• UL Voltage Rating: 600 V RMS
• Nominal Characteristic Impedance: 100 Ohm
• Operating Temperature Range: -55°C To +80°C
Specifications:-
• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• Part Number: 9815
Description:-
100 Ohm Twinax, 20 AWG stranded (7x28) 0.037" one tinned/ one bare copper conductors, polyethylene insulation, Duofoil + tinned copper braid shield (95% coverage), high-density polyethylene jacket.
Insulation:-
• Material: PE - Polyethylene
• Nominal Wall Thickness: 0.024 in
Inner Jacket:
• Material: PE - Polyethylene
• Nominal Diameter: 0.236 in
• Nominal Wall Thickness: 0.035 in
Outer Shield:-
• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%
• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%
• Outer Shield Table Notes: Polyethylene Grease
Outer Jacket:-
• Material: PE - Polyethylene
• Nom. Diameter: 0.33 in
• Nominal Wall Thickness: 0.034 in
Standards:-
• UL Voltage Rating: 600 V RMS
• Nominal Characteristic Impedance: 100 Ohm
• Operating Temperature Range: -55°C To +80°C
Specifications:-
• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: TC - Tinned Copper
• Size (AWG): 20
• No. of Conductor: 1
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• Part Number: 9815
