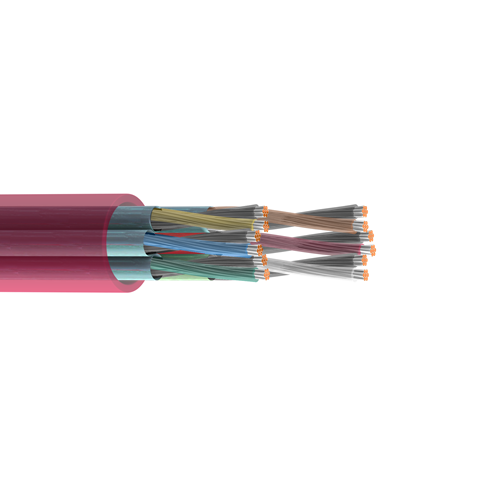

Belden 88778 22 AWG 6 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrumentation Cable

Description:

Audio, Control and Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, twisted pairs individually shielded with Beldfoil (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.049 in (1.2 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper

Outer Jacket:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.321 in (8.15 mm)
• Overall Cable Diameter (Nominal): 0.321 in (8.15 mm)

Standards:

• Voltage Rating: 300 V (CMG)
• Operating Temperature: -70°C to +200°C
• Nom. Characteristic Impedance: 50 Ohm

Applications:

• extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Pair: 6
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 88778
