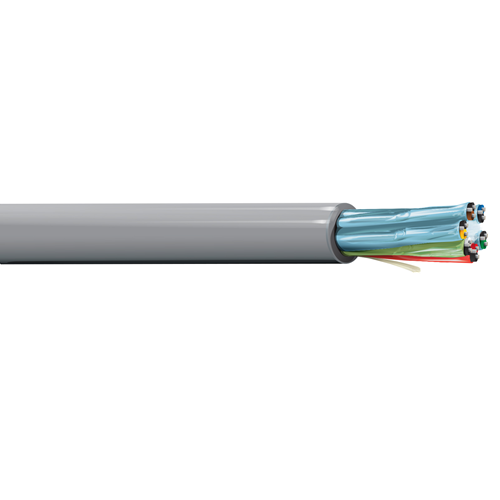

Belden 87778 22 AWG 6 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrumentation Cable

Description:

Audio, Control and Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, 6 twisted pairs individually shielded with Beldfoil (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom.Insulation Diameter: 0.049 in (1.2 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.309 in (7.85 mm)

Standards:

• Voltage Rating: 300 V
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature: -20°C To +150°C

Applications:

• extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Pair: 6
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 87778
