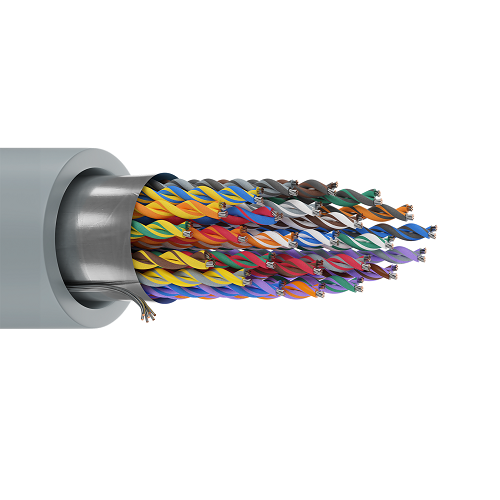

Belden 88125 24 AWG 25 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232/422 Cable

Description:-

Computer EIA RS-232/422 Cable, 25-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.015 in (0.38 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Diameter: 0.581 in (14.8 mm)
• Overall Cable Diameter (Nominal): 0.581 in (14.8 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 100 Ohm
• Operating Temperature Range: -20°C to +150°C

Applications:-

• extreme high temperature environments; rs-232 extended distance applications; rs-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:-

• Size (AWG): 24
• No. of Pairs: 25
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 88125
