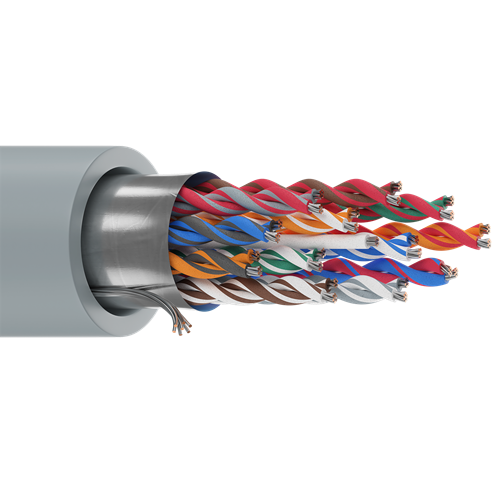

Belden 88112 24 AWG 12.5 Pair 7x32 Stranding Tinned Copper 300V Computer EIA RS-232/422 Cable

Description:

Computer EIA RS-232/422 Cable, 12.5-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom.Insulation Diameter: 0.054 in (1.4 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.397 in (10.1 mm)
• Overall Cable Diameter (Nominal): 0.397 in (10.1 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: -20°C to +150°C
• Nom. Characteristic Impedance: 100 Ohms

Applications:

• extreme high temperature environments; rs-232 extended distance applications; rs-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 12.5
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 88112
