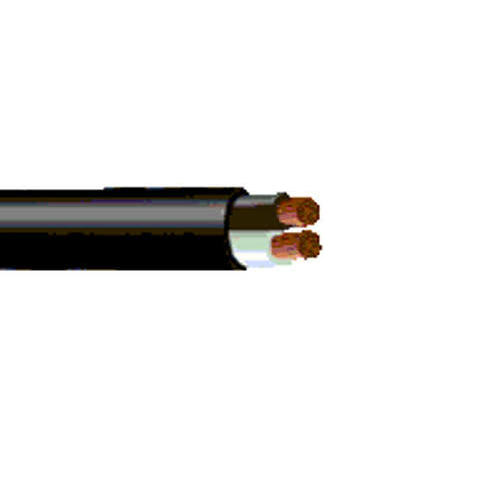

Belden 8810H 10 AWG 2 Conductor 105x30 Stranding Bare Copper 600V Speaker Cable

Description:-

10 AWG, stranded (19x23) bare copper conductors, PVC/Nylon insulation.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.162 in (4.11 mm)

• Material: Nylon
• Nom. Thickness: 0.005 in (0.13 mm)
• Nom. Insulation Diameter: 0.172 in (4.37 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.442 in
• Overall Cable Diameter (Nominal): 0.442 in

Standards:-

• UL Voltage Rating: 600 V (TC), 150 V (NPLF)
• Operating Temperature Range: -30°C To +75°C Wet; -30°C To +90°C Dry

Applications:-

• AUDITORIUM , STADIUM , RACE TRACK , CHURCH , TEMPLE , SYNAGOGUE , PLACE OF ASSEMBLY , CASINO , SOUND

Specifications:-

• Size (AWG): 10
• No. of Conductor: 2
• Stranding: 105x30
• Conductor Material: BC - Bare Copper
• Part Number: 8810H
