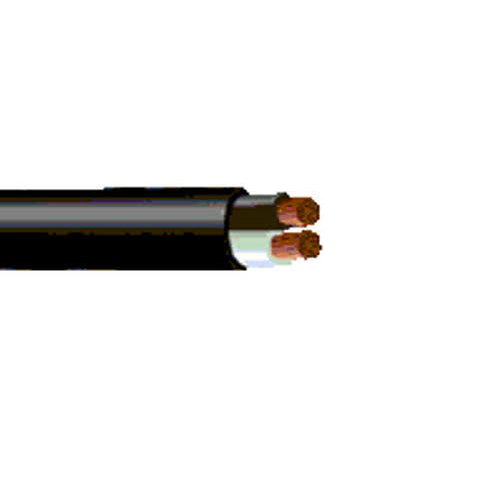

Belden 8808H 8 AWG 2 Conductor 7x19x29 Stranding Bare Copper 600V Speaker Cable

Description:-

8 AWG (19x21) bare copper conductors, PVC/nylon insulated, twisted pair, unshielded, PVC jacket, rip cord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Insulation Diameter: 0.244 in (6.20 mm)

• Material: Nylon
• Nom. Thickness: 0.006 in (0.15 mm)
• Nom. Insulation Diameter: 0.244 in (6.20 mm)

Outer Jacket:-

• Material: TPE - Thermoplastic Elastomer
• Nom. Thickness: 0.063 in (1.6 mm)
• Nom. Diameter: 0.618 in
• Overall Cable Diameter (Nominal): 0.618 in

Standards:-

• UL Voltage Rating: 600 V (TC), 150 V (NPLF)
• Operating Temperature Range: -30°C To +75°C Wet; -30°C To +90°C Dry

Applications:-

• Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound

Specifications:-

• Size (AWG): 8
• No. of Conductor: 2
• Stranding: 7x19x29
• Conductor Material: BC - Bare Copper
• Part Number: 8808H
