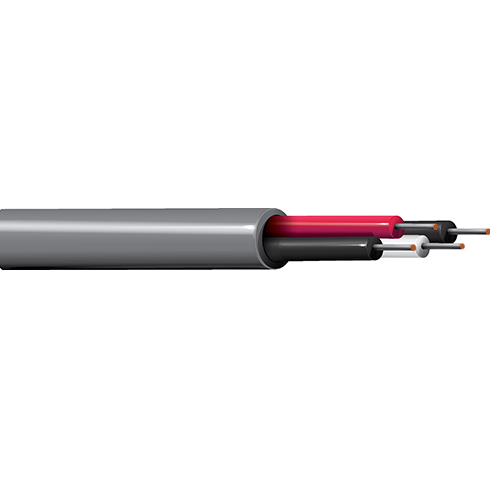

Belden 87761 22 AWG 2 Conductor 7x30 Stranding Tinned Copper 300V Electronic Cable

Description:

High Temperature Electronic, 2 Conductor 22 AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil Shield, PVDF Outer Jacket, CMP.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.042 in (1.1 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.116 in (2.95 mm)
• Overall Cable Diameter (Nominal): 0.116 in (2.95 mm)

Standards:

• Voltage Rating: 300 V (CMP)
• Operating Temperature: -20°C to +150°C
• Nom. Characteristic Impedance: 42 Ohms

Applications:

• extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 87761
