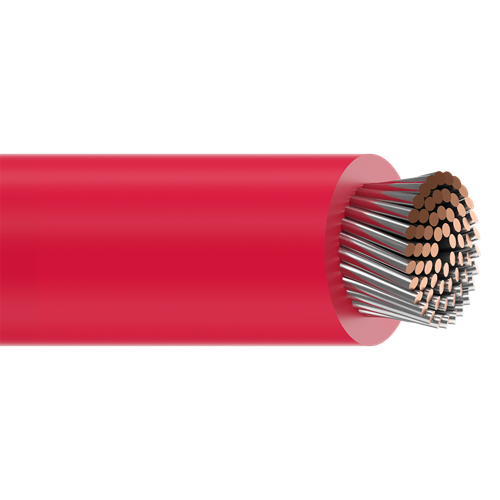

Belden 8527 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 1000V Lead Wire

Belden 8527 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 1000V Lead Wire

SKU: NES8527 Download PDF

gauge:
  • Belden 8527 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 1000V Lead Wire
FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $4.08 /FT
BEFORE   Now $4.08 /FT
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 8527 12 AWG 1 Conductor 65x30 Stranding Tinned Copper 1000V Lead Wire

Description:

Low Temp Plastic Lead Wire, 12 AWG (65x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.021 in (0.53 mm)
• Nom. Insulation Diameter: 0.128 in (3.25 mm)
• Overall Cable Diameter (Nominal): 0.128 in (3.25 mm)

Standards:

• Voltage Rating: 1000 V RMS
• Operating Temperature: -40°C To +80°C
• Military Compliance: MIL-W-76C Type MWP

Applications:

• inter-connection circuits, internal wiring of computer and electronic equipment, (Type MW) MIL-W-76C-Low Temp applications

Specifications:

• Size (AWG): 12
• No. of Conductor: 1
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8527
