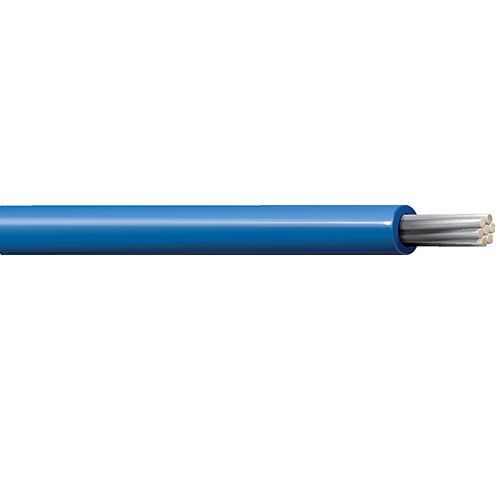

Belden 8522 18 AWG 1 Conductor 16x30 Stranding Tinned Copper 1000V Lead Wire

Belden 8522 18 AWG 1 Conductor 16x30 Stranding Tinned Copper 1000V Lead Wire

SKU: NES8522   Download PDF

Select a gauge:
  • Belden 8522 18 AWG 1 Conductor 16x30 Stranding Tinned Copper 1000V Lead Wire
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.06 /FT   Web pricing policy
BEFORE   Now $1.06 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Belden 8522 18 AWG 1 Conductor 16x30 Stranding Tinned Copper 1000V Lead Wire

Description:

Low Temp Plastic Lead Wire, 18 AWG (16x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.08 in (2.0 mm)
• Overall Cable Diameter (Nominal): 0.08 in (2.0 mm)

Standards:

• Voltage Rating: 1000 V RMS
• Operating Temperature: -40°C To +80°C
• Military Compliance: MIL-W-76C Type MWP

Applications:

• inter-connection circuits, internal wiring of computers and electronic equipment, (Type MW) MIL-W-76C-Low Temp applications

Specifications:

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: 16x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8522
