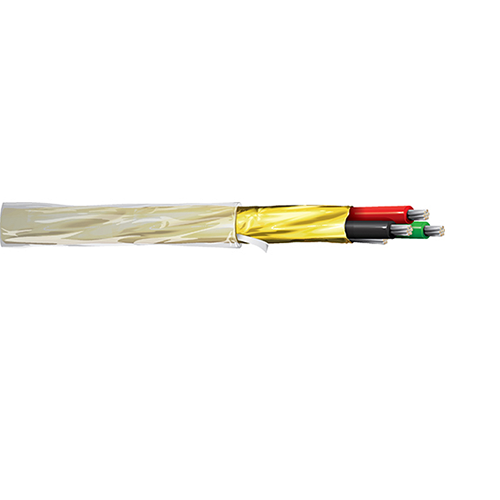

Belden 85241 16 AWG 3 Conductor 19x29 Stranding Tinned Copper 350V Electronic Cable

Description:-

High Temperature Electronic, 3 Conductor 16 AWG (19x29) Tinned Copper, ETFE Insulation, Overall Beldfoil Shield, ETFE Outer Jacket.

Insulation:-

• Material: ETFE - Ethylene Tetrafluoroethylene
• Nom. Thickness: 0.014 in (0.36 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Kapton)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper

Outer Jacket:-

• Material: ETFE - Ethylene Tetrafluoroethylene
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.225 in (5.72 mm)
• Overall Cable Diameter (Nominal): 0.225 in (5.72 mm)

Standards:-

• UL Voltage Rating: 350 V
• Operating Temperature Range: -60°C to +150°C

Applications:-

• extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); instrumentation

Specifications:-

• Size (AWG): 16
• No. of Conductor: 3
• Stranding: 19x29
• Conductor Material: TC - Tinned Copper
• Part Number: 85241
