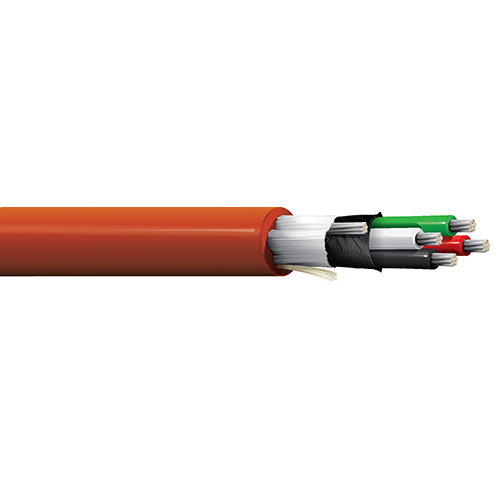

Belden 83396 22 AWG 4 Conductor 7x30 Stranding Tinned Copper 600V Electronic Cable

Description:

High Temperature Electronic, 4 Conductor 22 AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil Shield, Silicone Outer Jacket, AWM 4516.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Insulation Diameter: 0.060 in (1.5 mm)

Outer Shield:

• Shield Type: Tape
• Material: Textile (Conductive)
• Coverage: 100%

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: Silicone Rubber
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.217 in (5.51 mm)
• Overall Cable Diameter (Nominal): 0.217 in (5.51 mm)

Standards:

• Operating Temperature: -70°C to +150°C
• Voltage Rating: 350 V (Between Conductors), 2000 V DC (Through Jacket), 600 V (UL AWM 4516)

Applications:

• extreme high/low temperature environments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 4
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 83396
