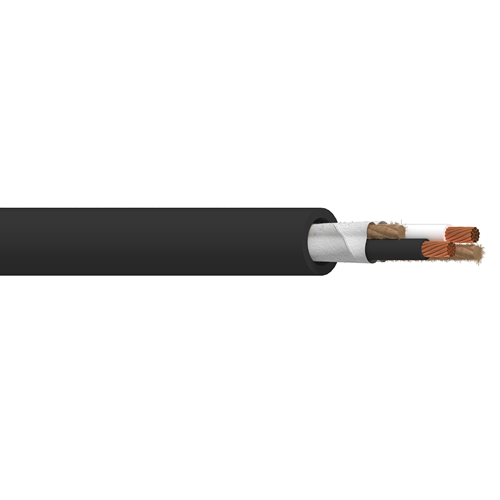

Belden 8472 16 AWG 2 Conductor 65x34 Stranding Bare Copper 300V Portable Cordage Cable

Description:

Portable Cordage, 2 Conductor 16 AWG (65x34) Bare Copper, EPDM Insulation, Rubber Outer Jacket, UL Type SJ.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Insulation Diameter: 0.123 in (3.12 mm)

Outer Jacket:

• Material: SBR - Styrene Butadiene Rubber
• Nom. Thickness: 0.0345 in (0.876 mm)
• Nom. Diameter: 0.315 in
• Overall Cable Diameter (Nominal): 0.315 in
• Separator: Paper Tape

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +60°C

Specifications:

• Size (AWG): 16
• No. of Conductor: 2
• Stranding: 65x34
• Conductor Material: BC - Bare Copper
• Part Number: 8472
