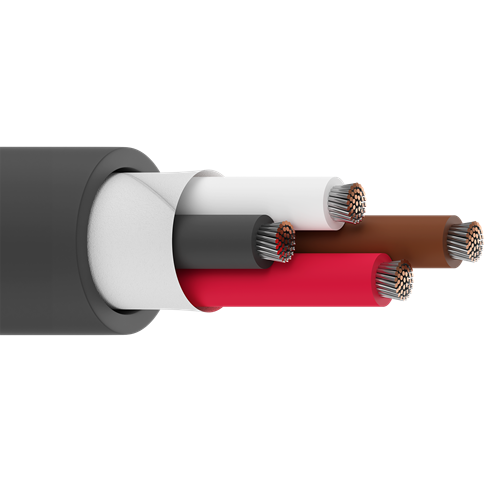

Belden 8454 18 AWG 4 Conductor 41x34 Stranding Tinned Copper Portable Cordage Cable

Description:

Portable Cordage, 4 Conductor 18AWG (41x34) Tinned Copper, EPDM Insulation, Rubber Outer Jacket, UL AWM 4097.

Insulation:

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.018 in (0.46 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Jacket:

• Material: SBR - Styrene Butadiene Rubber
• Nom. Thickness: 0.036 in (0.91 mm)
• Nom. Diameter: 0.265 in (6.73 mm)
• Overall Cable Diameter (Nominal): 0.265 in (6.73 mm)

Standards:

• Shielding: Unshielded
• Voltage Rating: 300 V (UL AWM 4097)
• Temperature Rating: -40°C to +60°C

Applications:

• Junior light-duty vacuum cord(300V), Other light-duty equipements
