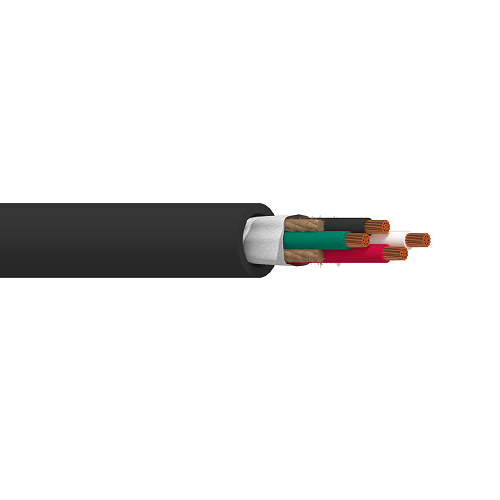

Belden 19217 14 AWG 4 Conductor 41x30 Stranding Bare Copper 600V Portable Cordage Cable

Description:-

Portable Cordage, 4 Conductor 14 AWG (41x30) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO.

Insulation:-

• Material: EPDM - Ethylene Propylene Diene Monomer
• Nom. Thickness: 0.048 in (1.2 mm)
• Nom. Insulation Diameter: 0.170 in (4.32 mm)

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene (Thermoset)
• Nom. Thickness: 0.087 in (2.2 mm)
• Nom. Diameter: 0.603 in
• Overall Cable Diameter (Nominal): 0.603 in
• Separator: Paper Tape

Standards:-

• UL Voltage Rating: 600 V
• Operating Temperature Range: -20°C To +90°C

Specifications:-

• Size (AWG): 14
• No. of Conductors: 4
• Stranding: 41x30
• Conductor Material: BC - Bare Copper
• Part Number: 19217
